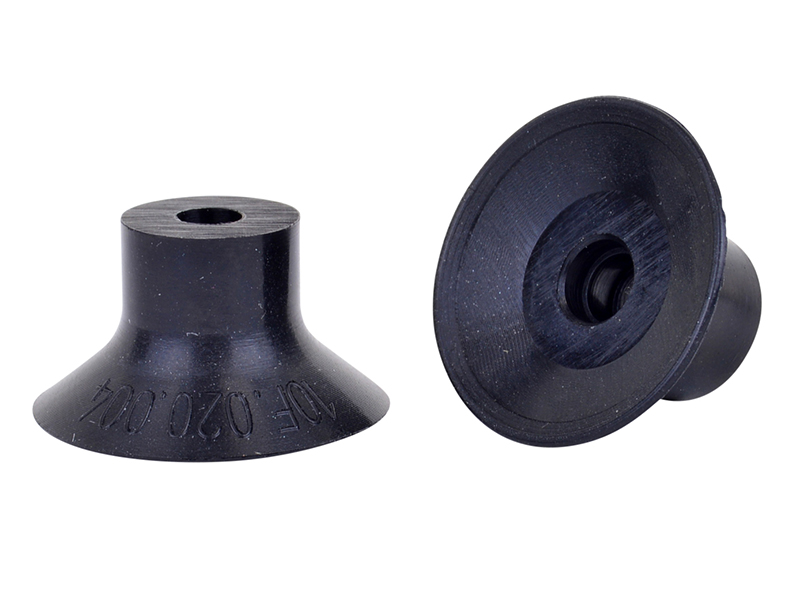

Item: 10F.020.004.01 - 20 mm flat suction cup, NBR

Item#: 10F.020.004.01
Price: $2.00 ea.

20 mm flat suction cup, NBR

General Specifications

Style: Flat
Cleats: No
Material: NBR
Thread Size: None
Outside Diameter: 20.0mm
Weight(lbs): .0020
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.020.004.01


Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.58 lbs. 0.29 lbs.
18"Hg 1.75 lbs. 0.87 lbs.
27"Hg 2.62 lbs. 1.31 lbs.

***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: NO

img  Recommended replacement for: VP20NBR, F20-NBR

Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C)
