Item: 10F.020.004.01-M5 - 20 mm flat suction cup, NBR, with M5 male fitting
|
Item#: 10F.020.004.01-M5 Price: $3.93 ea.
|

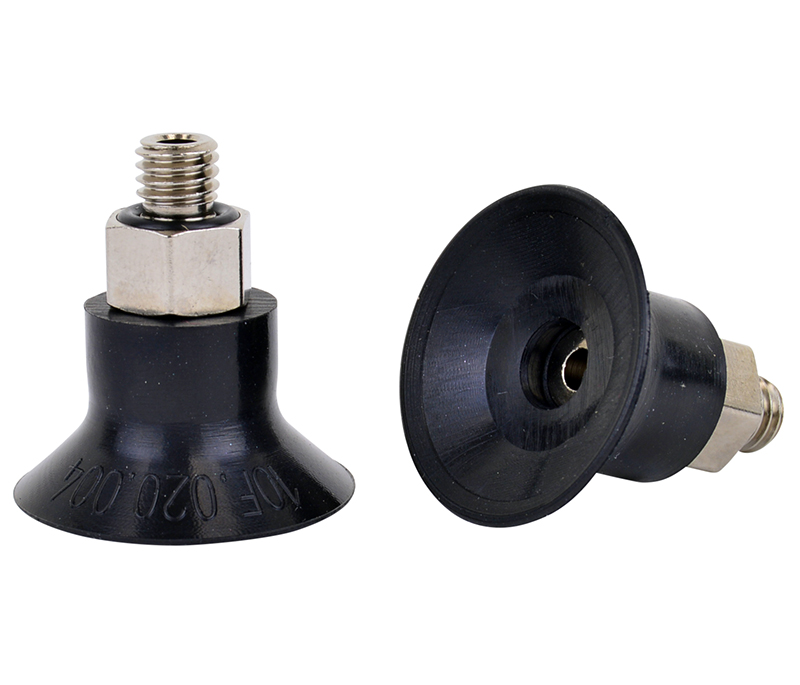

20 mm flat suction cup, NBR, with M5 male fitting
General Specifications
Style: Flat Cleats: No Material: NBR Thread Size: M5 male Outside Diameter: 20.0mm Weight(lbs): .0100 Color: Black Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.020.004.01-M5
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
0.58 lbs. |
0.29 lbs. |
18"Hg |
1.75 lbs. |
0.87 lbs. |
27"Hg |
2.62 lbs. |
1.31 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
Recommended replacement for: VP20NBRIMM5C, F20-NBR-5M |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 10F.020.004.01-M5
No CAD files available for this Product
Dimensional drawing for Item: 10F.020.004.01-M5
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.020.004.01-M5
No parts or accessories related to this item were found.
