Item: 10F.020.004.01-G18F - 20 mm flat suction cup, NBR, with G1/8 female fit... (Full Description below)
|
Item#: 10F.020.004.01-G18F Price: $4.31 ea.
|

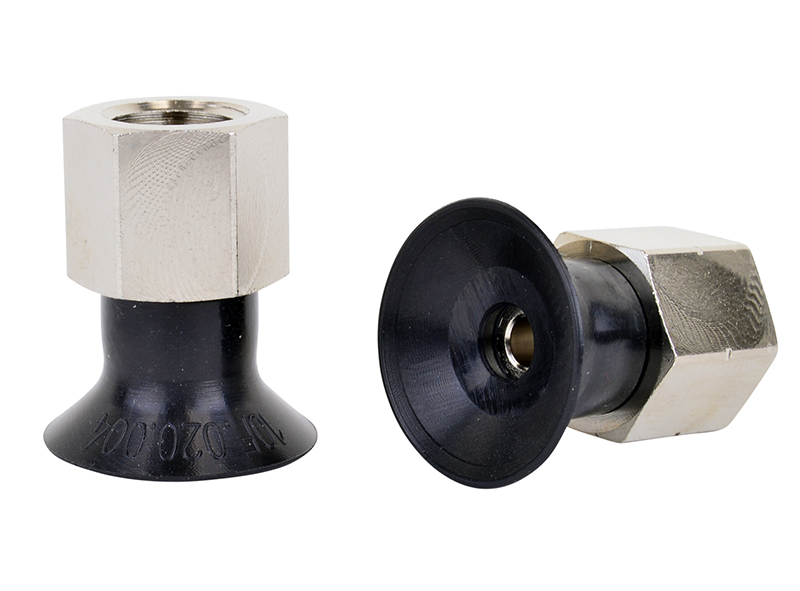

20 mm flat suction cup, NBR, with G1/8 female fitting
General Specifications
Style: Flat Cleats: No Material: NBR Thread Size: 1/8" female Outside Diameter: 20.0mm Weight(lbs): .0105 Color: Black Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.020.004.01-G18F
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
0.58 lbs. |
0.29 lbs. |
18"Hg |
1.75 lbs. |
0.87 lbs. |
27"Hg |
2.62 lbs. |
1.31 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
Recommended replacement for: VP20NBRIF18C, F20-NBR-18F-G |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 10F.020.004.01-G18F
No CAD files available for this Product
Dimensional drawing for Item: 10F.020.004.01-G18F
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.020.004.01-G18F
Fitting Image for 401.026 |
General Specifications
Material: Aluminum
Weight: .0085(lbs)
Dimensions: G1/8" female
Description: G1/8 female barb fitting for series 1 cups
*This fitting is included with the cup(10F.020.004.01-G18F)
|
Dimensional Fitting Drawing for 401.026 |
|
---|
