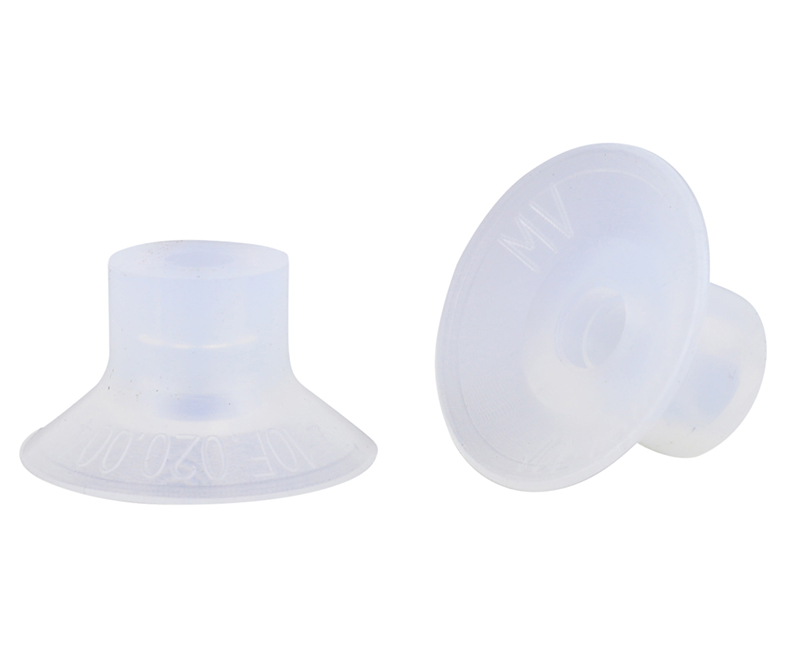

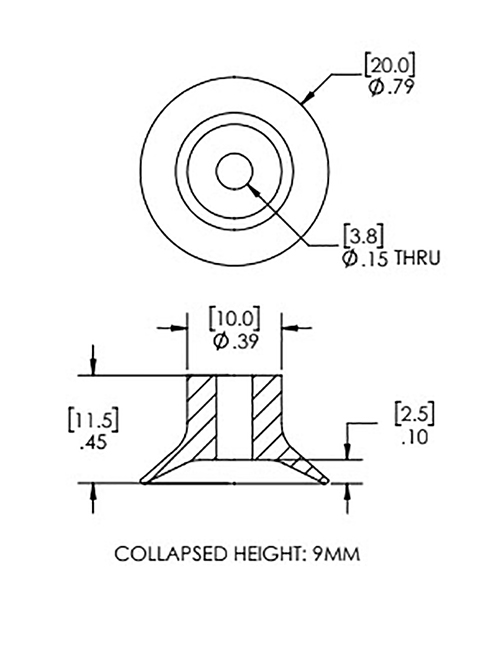

Home > Products > Suction Cups > 10F.020.004.02 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.020.004.02 - 20 mm flat suction cup, FDA Silicone Item#: 10F.020.004.02 Price: $3.15 ea. 20 mm flat suction cup, FDA Silicone General Specifications Style: Flat Cleats: No Material: Silicone Thread Size: None Outside Diameter: 20.0mm Weight(lbs): .0020 Color: Translucent Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item 10F.020.004.02    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.58 lbs. 0.29 lbs. 18"Hg 1.75 lbs. 0.87 lbs. 27"Hg 2.62 lbs. 1.31 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: VP20SIT5, F20-SIT Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos Available for: 10F.020.004.02 Related CAD files of Product Dimensional drawing for Item: 10F.020.004.02                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.020.004.02                                Fitting Image for 130.013C Item#: 130.013C compatible with cup #10F.020.004.02 General Specifications Material: Aluminum Weight: .0080(lbs) Dimensions: M5 male Price: $1.83 each Description: M5 male barb suction cup fitting Add to Cart Dimensional Fitting Drawing for 130.013C Fitting Image for 401.002 Item#: 401.002 compatible with cup #10F.020.004.02 General Specifications Material: Aluminum Weight: .0085(lbs) Dimensions: G1/8" male Price: $2.21 each Description: G1/8 male barb fitting Add to Cart Dimensional Fitting Drawing for 401.002 Fitting Image for 401.026 Item#: 401.026 compatible with cup #10F.020.004.02 General Specifications Material: Aluminum Weight: .0085(lbs) Dimensions: G1/8" female Price: $2.21 each Description: G1/8 female barb fitting for series 1 cups Add to Cart Dimensional Fitting Drawing for 401.026 Fitting Image for VB18M Item#: VB18M compatible with cup #10F.020.004.02 General Specifications Material: Aluminum Weight: .0080(lbs) Dimensions: 1/8" NPT male Price: $2.21 each Description: 1/8 male NPT barb fitting Add to Cart Dimensional Fitting Drawing for VB18M Fitting Image for 401.025 Item#: 401.025 compatible with cup #10F.020.004.02 General Specifications Material: Aluminum Weight: .0085(lbs) Dimensions: 1/8" female Price: $2.21 each Description: 1/8 NPT female barb fitting for series 1 cups Add to Cart Dimensional Fitting Drawing for 401.025 Fitting Image for 411.001 Item#: 411.001 compatible with cup #10F.020.004.02 General Specifications Material: Nickel Plated Brass Weight: .0070(lbs) Dimensions: 10-32 Barb Price: $1.89 each Description: 10-32 barb fitting Add to Cart Dimensional Fitting Drawing for 411.001

---
