Home > Products > Suction Cups > 10F.020.004.02-M5

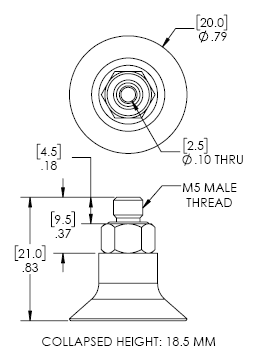

Product DetailsDimensional DrawingParts & Accessories

Item: 10F.020.004.02-M5 - 20 mm flat suction cup, FDA Silicone, with M5 male fi... (Full Description below)

Item#: 10F.020.004.02-M5
Price: $4.74 ea.

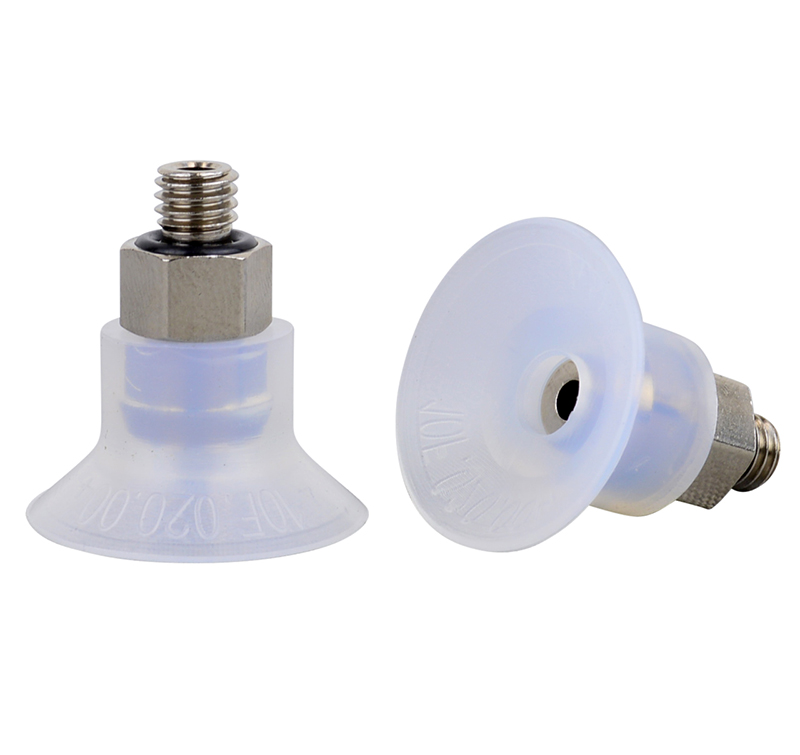

20 mm flat suction cup, FDA Silicone, with M5 male fitting

General Specifications

Style: Flat
Cleats: No
Material: Silicone
Thread Size: M5 male
Outside Diameter: 20.0mm
Weight(lbs): .0100
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.020.004.02-M5


Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.58 lbs. 0.29 lbs.
18"Hg 1.75 lbs. 0.87 lbs.
27"Hg 2.62 lbs. 1.31 lbs.

***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

img  Recommended replacement for: VP20SIT5IMM5C, F20-SIT-5M

Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
