Item: 10F.020.004.02-18M - 20 mm flat suction cup, FDA Silicone, with 1/8 ma... (Full Description below)
| |
Item#: 10F.020.004.02-18M
Price: $5.36 ea.
|

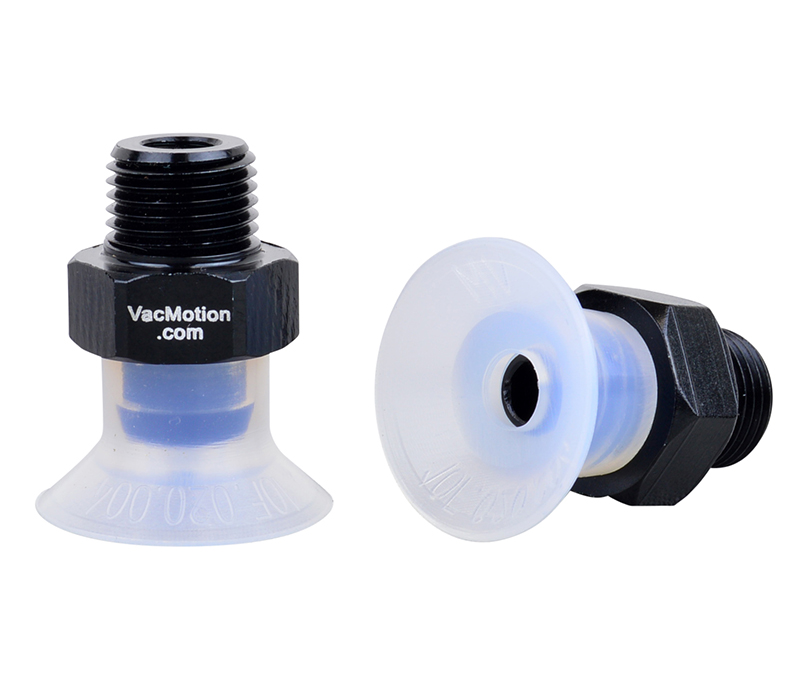

20 mm flat suction cup, FDA Silicone, with 1/8 male NPT fitting
General Specifications
Style: Flat
Cleats: No
Material: Silicone
Thread Size: 1/8" male
Outside Diameter: 20.0mm
Weight(lbs): .0105
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.020.004.02-18M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.58 lbs. |
0.29 lbs. |
| 18"Hg |
1.75 lbs. |
0.87 lbs. |
| 27"Hg |
2.62 lbs. |
1.31 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: F20-SIT-18M |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 10F.020.004.02-18M
Related CAD files of Product

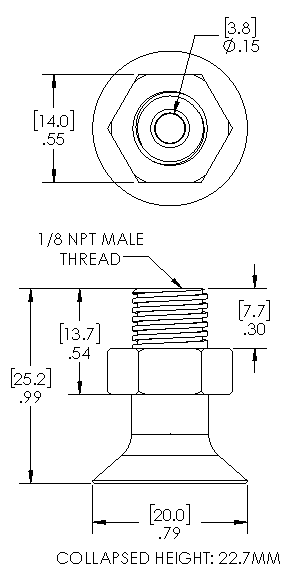

Dimensional drawing for Item: 10F.020.004.02-18M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.020.004.02-18M
Fitting Image for VB18M |
General Specifications
Material: Aluminum
Weight: .0080(lbs)
Dimensions: 1/8" NPT male
Description: 1/8 male NPT barb fitting
*This fitting is included with the cup(10F.020.004.02-18M)
|
Dimensional Fitting Drawing for VB18M |
|
|---|
