Home > Products > Suction Cups > 10F.025.004.01

Product DetailsDimensional DrawingParts & Accessories
Quantity:

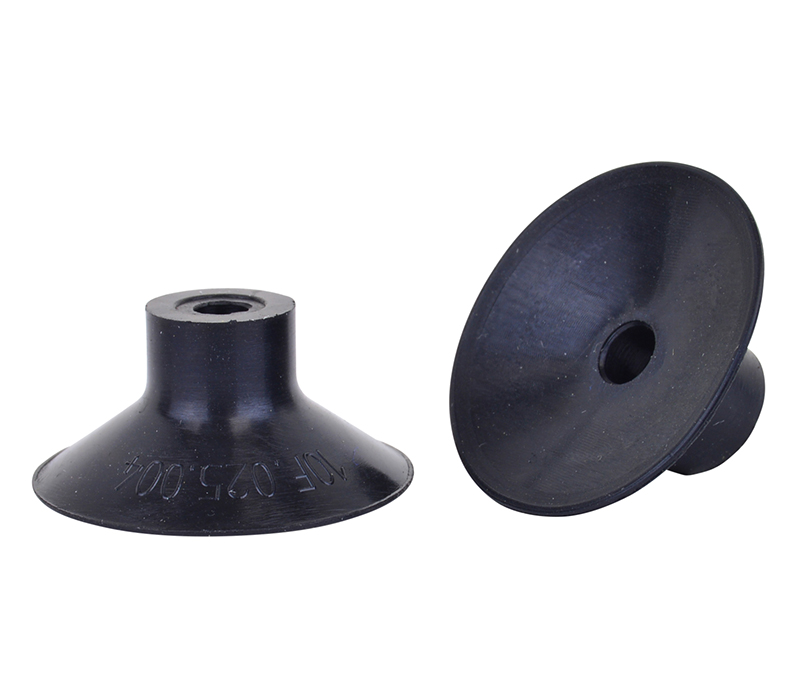

Item: 10F.025.004.01 - 25 mm flat suction cup, NBR
10F.025.004.01


Item#: 10F.025.004.01
Price: $2.20 ea.





25 mm flat suction cup, NBR

General Specifications

Style: Flat
Cleats: No
Material: NBR
Thread Size: None
Outside Diameter: 25.0mm
Weight(lbs): .0025
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.025.004.01



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.91 lbs. 0.45 lbs.
18"Hg 2.73 lbs. 1.36 lbs.
27"Hg 4.10 lbs. 2.05 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: NO

img  Recommended replacement for: VP25NBR, F25-NBR


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C)

Video of Product in Action

Vacmotion Product Video
No Videos Available for: 10F.025.004.01
