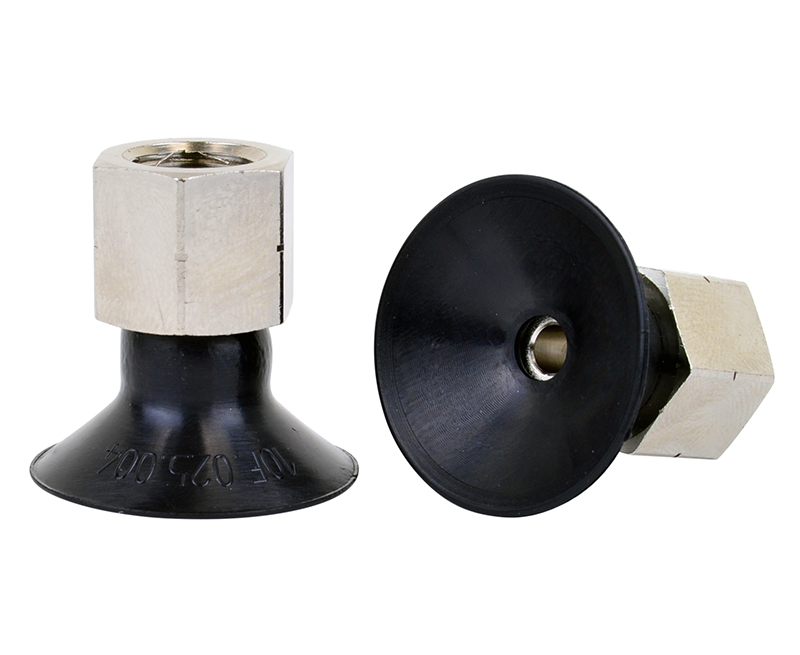

Home > Products > Suction Cups > 10F.025.004.01-18F Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.025.004.01-18F - 25 mm flat suction cup, NBR, with 1/8female NPT f... (Full Description below) Item#: 10F.025.004.01-18F Price: $4.52 ea. 25 mm flat suction cup, NBR, with 1/8female NPT fitting General Specifications Style: Flat Cleats: No Material: NBR Thread Size: 1/8" female Outside Diameter: 25.0mm Weight(lbs): .0110 Color: Black Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item 10F.025.004.01-18F    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.91 lbs. 0.45 lbs. 18"Hg 2.73 lbs. 1.36 lbs. 27"Hg 4.10 lbs. 2.05 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES   Recommended replacement for: F25-NBR-18F Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C) Video of Product in Action No Videos available for: 10F.025.004.01-18F Related CAD files of Product Dimensional drawing for Item: 10F.025.004.01-18F                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.025.004.01-18F                                Fitting Image for 401.025 Item#: 401.025 compatible with cup #10F.025.004.01-18F General Specifications Material: Aluminum Weight: .0085(lbs) Dimensions: 1/8" female Description: 1/8 NPT female barb fitting for series 1 cups *This fitting is included with the cup(10F.025.004.01-18F) Dimensional Fitting Drawing for 401.025
