Quantity:
Item: 10F.025.004.02-G18M - 25 mm flat suction cup, FDA Silicone, with G1/8ma... (Full Description below)
| |
Item#: 10F.025.004.02-G18M
Price: $5.88 ea.
|

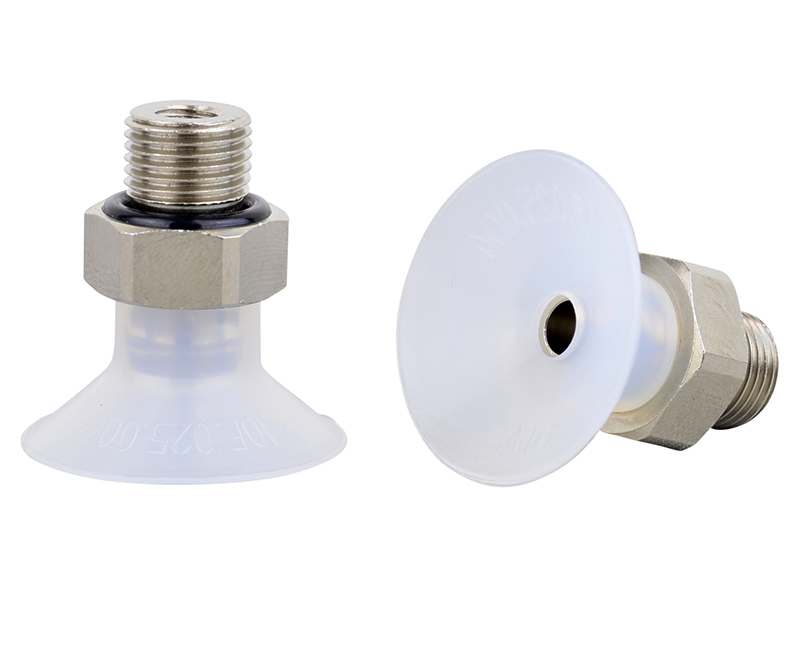

25 mm flat suction cup, FDA Silicone, with G1/8male fitting
General Specifications
Style: Flat
Cleats: No
Material: Silicone
Thread Size: 1/8" male
Outside Diameter: 25.0mm
Weight(lbs): .0110
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.025.004.02-G18M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.91 lbs. |
0.45 lbs. |
| 18"Hg |
2.73 lbs. |
1.36 lbs. |
| 27"Hg |
4.10 lbs. |
2.05 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: VP25SIT5IM18C, F25-SIT-18M-G |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action  No Videos available for: 10F.025.004.02-G18M Related CAD files of Product
Dimensional drawing for Item: 10F.025.004.02-G18M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.025.004.02-G18M
Fitting Image for 401.002 |
General Specifications
Material: Aluminum
Weight: .0085(lbs)
Dimensions: G1/8" male
Description: G1/8 male barb fitting
*This fitting is included with the cup(10F.025.004.02-G18M)
|
Dimensional Fitting Drawing for 401.002 |
|
|---|
|
