Item: 10F.030.002.01-G14M - 30 mm flat suction cup with cleats, NBR, with G1/4 ma... (Full Description below)
10F.030.002.01-G14M


Item#: 10F.030.002.01-G14M
Price: $6.25 ea.

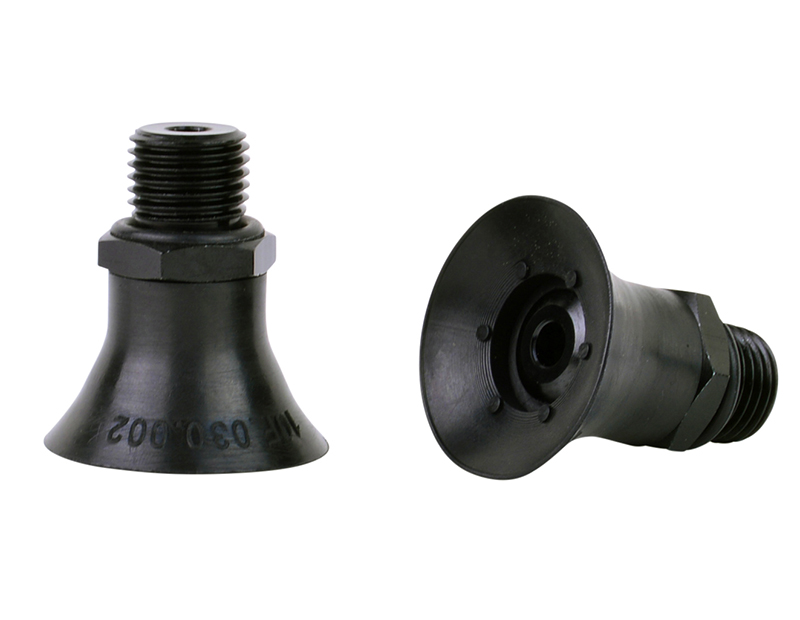

30 mm flat suction cup with cleats, NBR, with G1/4 male fitting

General Specifications

Style: Flat
Cleats: Yes
Material: NBR
Thread Size: 1/4" male
Outside Diameter: 30.0mm
Weight(lbs): .0250
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.030.002.01-G14M



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 1.31 lbs. 0.65 lbs.
18"Hg 3.94 lbs. 1.97 lbs.
27"Hg 5.91 lbs. 2.95 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

img  Recommended replacement for: VP30NBRIM14C, VP30NBRIM14, VP30NBRIM14V, F30-NBR-14M-G


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C)

Video of Product in Action

Vacmotion Product Video
No Videos Available for: 10F.030.002.01-G14M
