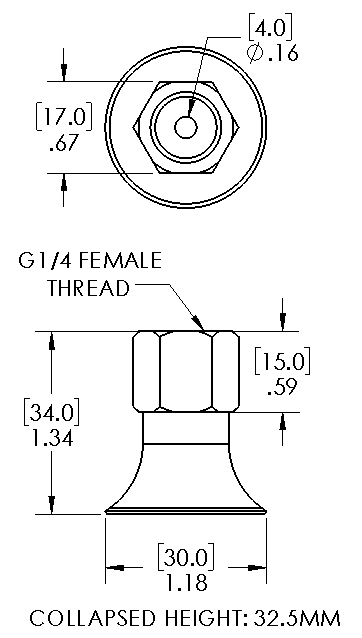

Product DetailsDimensional DrawingParts & Accessories
Quantity:

Item: 10F.030.002.01-G14F - 30 mm flat suction cup with cleats , NBR, with G1/4 f... (Full Description below)
10F.030.002.01-G14F


Item#: 10F.030.002.01-G14F
Price: $6.45 ea.





30 mm flat suction cup with cleats , NBR, with G1/4 female fitting

General Specifications

Style: Flat
Cleats: Yes
Material: NBR
Thread Size: 1/4" female
Outside Diameter: 30.0mm
Weight(lbs): .0265
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.030.002.01-G14F



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 1.31 lbs. 0.65 lbs.
18"Hg 3.94 lbs. 1.97 lbs.
27"Hg 5.91 lbs. 2.95 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

img  Recommended replacement for: VP30NBRIF14C, VP30NBRIF14, VP30NBRIF14V, F30-NBR-14F-G


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C)
