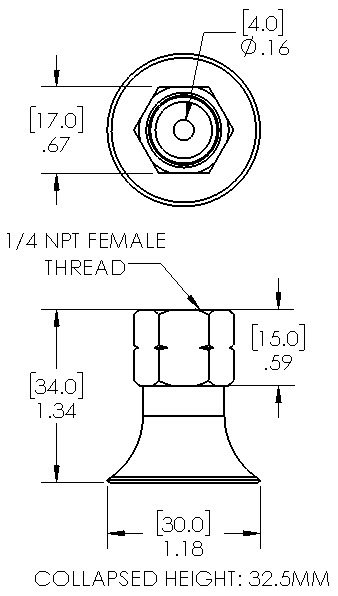

Product DetailsDimensional DrawingParts & Accessories

Item: 10F.030.002.01-14F - 30 mm flat suction cup with cleats, NBR, with 1/4 fem... (Full Description below)

Item#: 10F.030.002.01-14F
Price: $6.11 ea.

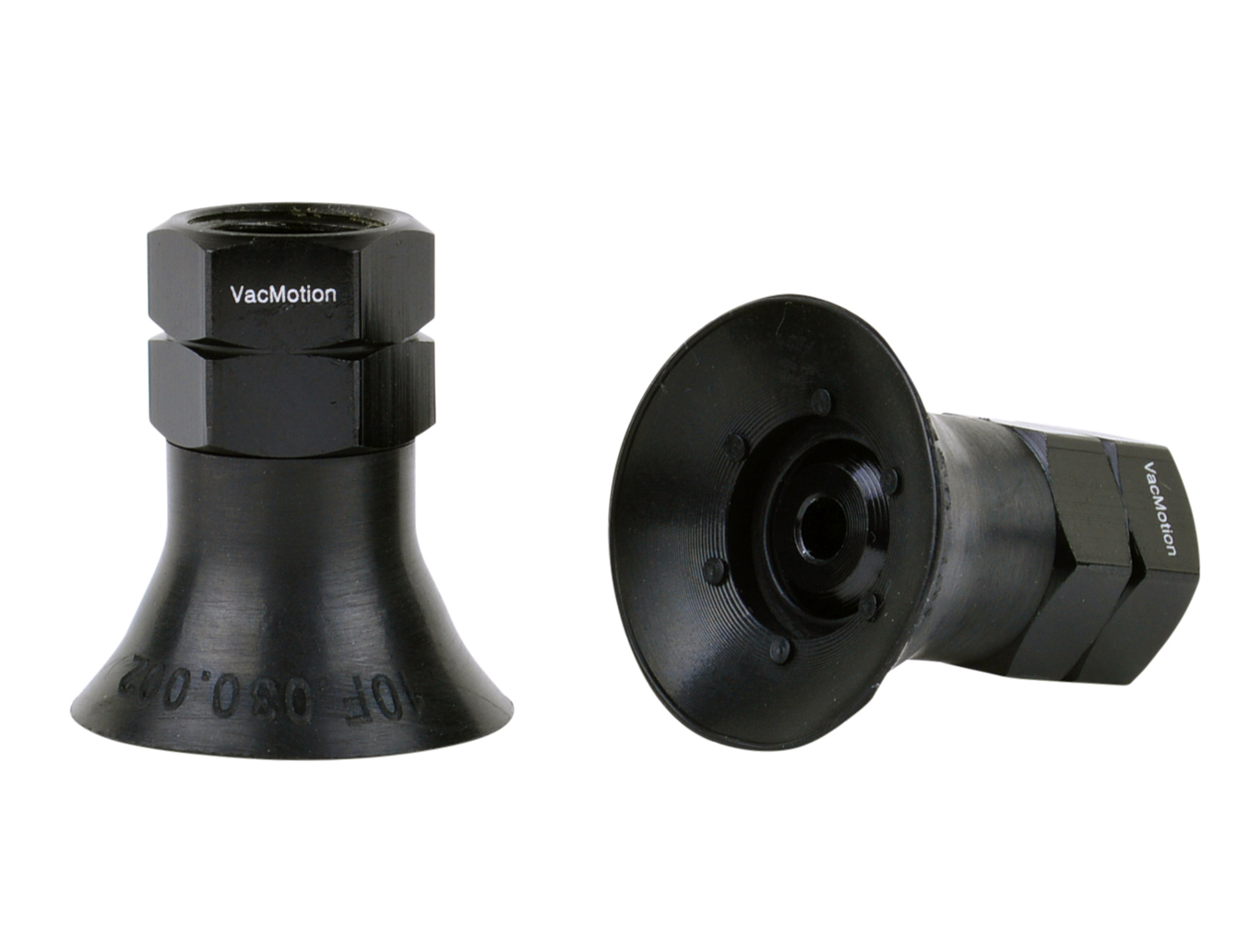

30 mm flat suction cup with cleats, NBR, with 1/4 female NPT fitting

General Specifications

Style: Flat
Cleats: Yes
Material: NBR
Thread Size: 1/4" female
Outside Diameter: 30.0mm
Weight(lbs): .0195
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.030.002.01-14F


Level of Vacuum (inHg) Horizontal Vertical
6"Hg 1.31 lbs. 0.65 lbs.
18"Hg 3.94 lbs. 1.97 lbs.
27"Hg 5.91 lbs. 2.95 lbs.

***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

img  Recommended replacement for: F30-NBR-14F

Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C)
