Item: 10F.030.002.02-G18F - 30 mm flat suction cup with cleats, FDA Silicone,... (Full Description below)
|
Item#: 10F.030.002.02-G18F Price: $7.99 ea.
|

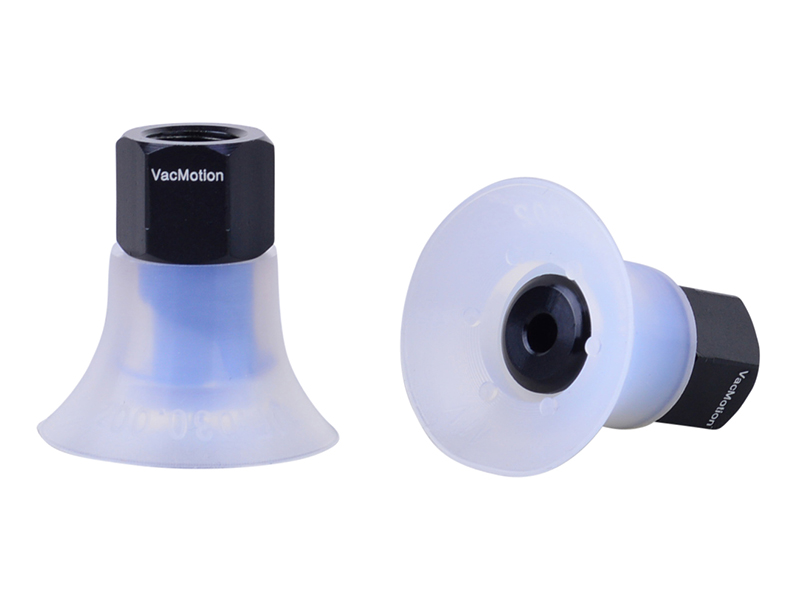

30 mm flat suction cup with cleats, FDA Silicone, with G1/8 female fitting
General Specifications
Style: Flat Cleats: Yes Material: Silicone Thread Size: 1/8" female Outside Diameter: 30.0mm Weight(lbs): .0195 Color: Translucent Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.030.002.02-G18F
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
1.31 lbs. |
0.65 lbs. |
18"Hg |
3.94 lbs. |
1.97 lbs. |
27"Hg |
5.91 lbs. |
2.95 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
Recommended replacement for: VP30SIT5IF18V, F30-SIT-18F-G |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 10F.030.002.02-G18F
No CAD files available for this Product

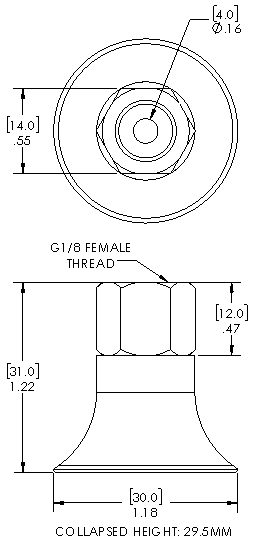

Dimensional drawing for Item: 10F.030.002.02-G18F
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.030.002.02-G18F
Fitting Image for 401.034 |
General Specifications
Material: Aluminum
Weight: .0052(lbs)
Dimensions: G1/8" female
Description: G1/8 female barb fitting (MB/SB 32-62mm)
*This fitting is included with the cup(10F.030.002.02-G18F)
|
Dimensional Fitting Drawing for 401.034 |
|
---|
