Item: 10F.030.002.02-18M - 30 mm flat suction cup with cleats, FDA Silicone, wit... (Full Description below)
10F.030.002.02-18M


Item#: 10F.030.002.02-18M
Price: $8.33 ea.

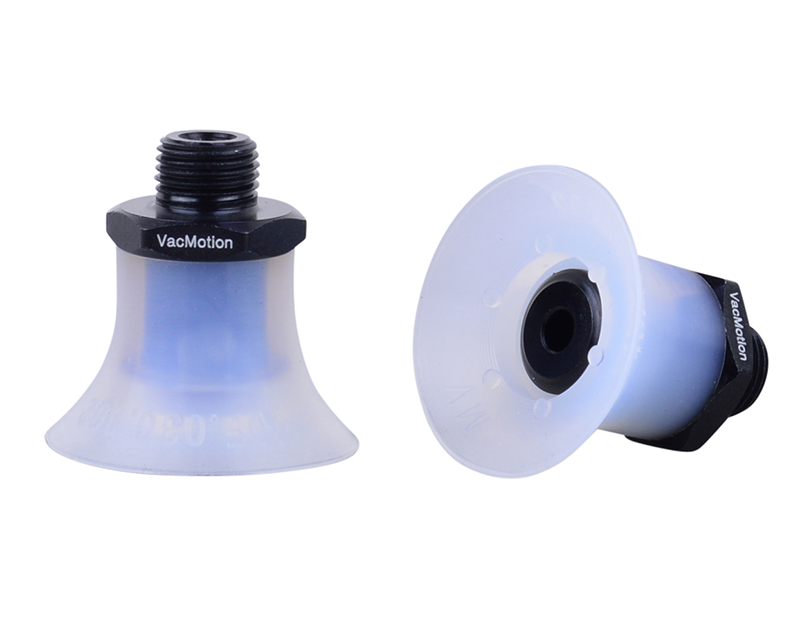

30 mm flat suction cup with cleats, FDA Silicone, with 1/8 male NPT fitting

General Specifications

Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 1/8" male
Outside Diameter: 30.0mm
Weight(lbs): .0225
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.030.002.02-18M



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 1.31 lbs. 0.65 lbs.
18"Hg 3.94 lbs. 1.97 lbs.
27"Hg 5.91 lbs. 2.95 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

img  Recommended replacement for: F30-SIT-18M


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
