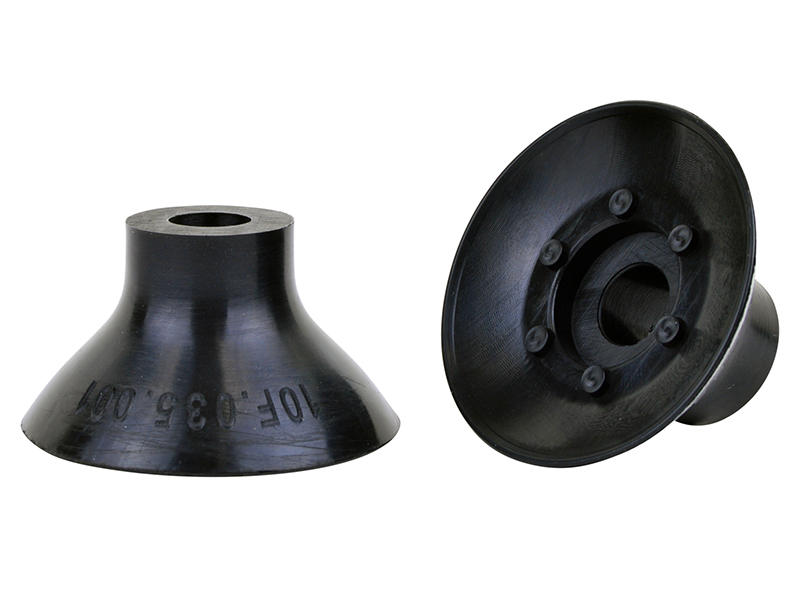

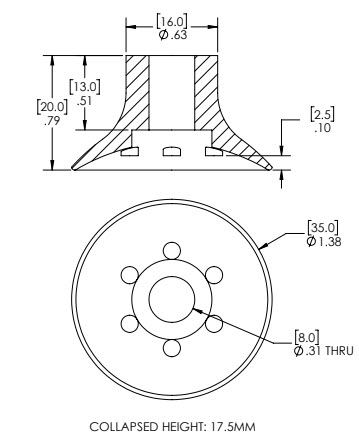

Item: 10F.035.001.01 - 35 mm flat suction cup with cleats, NBR
| |
Item#: 10F.035.001.01
Price: $3.68 ea.
|
35 mm flat suction cup with cleats, NBR
General Specifications
Style: Flat
Cleats: Yes
Material: NBR
Thread Size: None
Outside Diameter: 35.0mm
Weight(lbs): .0140
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.035.001.01
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.78 lbs. |
0.89 lbs. |
| 18"Hg |
5.36 lbs. |
2.68 lbs. |
| 27"Hg |
8.05 lbs. |
4.02 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: VP35NBR, F35-NBR |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos available for: 10F.035.001.01
Related CAD files of Product
