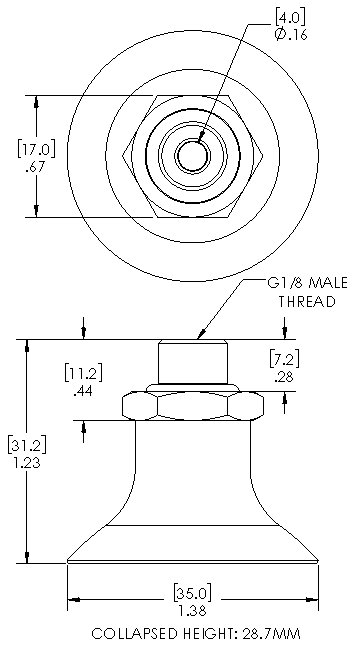

Product DetailsDimensional DrawingParts & Accessories
Quantity:

Item: 10F.035.001.01-G18M - 35 mm flat suction cup with cleats, NBR, with G1/8 ma... (Full Description below)
10F.035.001.01-G18M


Item#: 10F.035.001.01-G18M
Price: $7.58 ea.

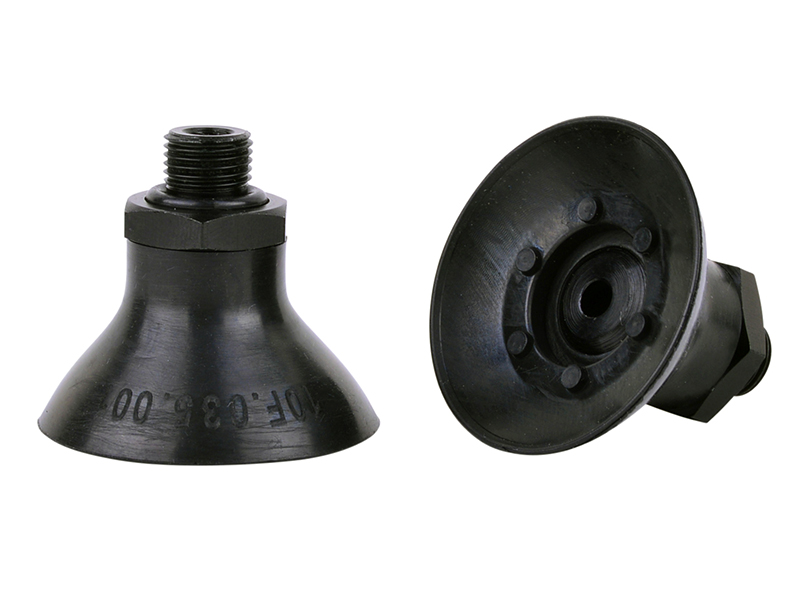

35 mm flat suction cup with cleats, NBR, with G1/8 male fitting

General Specifications

Style: Flat
Cleats: Yes
Material: NBR
Thread Size: 1/8" male
Outside Diameter: 35.0mm
Weight(lbs): .0275
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.035.001.01-G18M



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 1.78 lbs. 0.89 lbs.
18"Hg 5.36 lbs. 2.68 lbs.
27"Hg 8.05 lbs. 4.02 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

img  Recommended replacement for: VP35NBRIM18V, F35-NBR-18M-G


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C)

Video of Product in Action

Vacmotion Product Video
No Videos Available for: 10F.035.001.01-G18M
