Item: 10F.035.001.01-18M - 35 mm flat suction cup with cleats, NBR, with 1/8... (Full Description below)
|
Item#: 10F.035.001.01-18M Price: $7.17 ea.
|

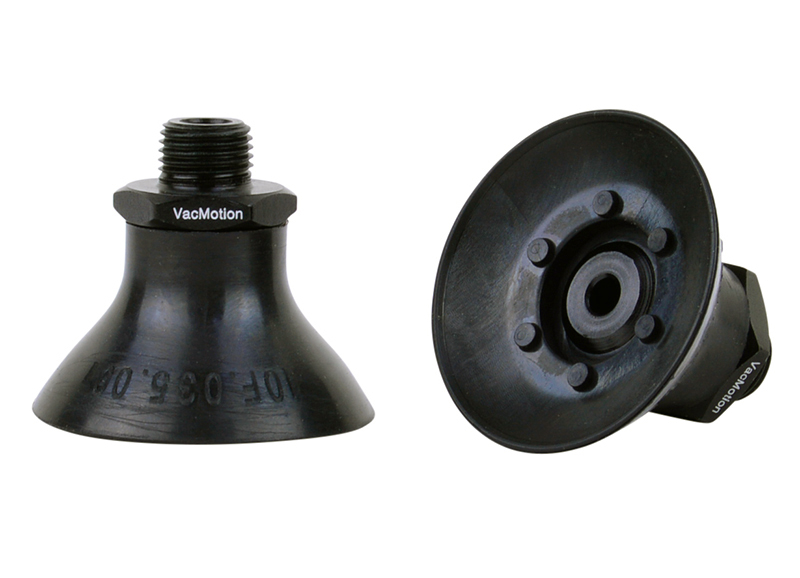

35 mm flat suction cup with cleats, NBR, with 1/8 male NPT fitting
General Specifications
Style: Flat Cleats: Yes Material: NBR Thread Size: 1/8" male Outside Diameter: 35.0mm Weight(lbs): .0275 Color: Black Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.035.001.01-18M
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
1.78 lbs. |
0.89 lbs. |
18"Hg |
5.36 lbs. |
2.68 lbs. |
27"Hg |
8.05 lbs. |
4.02 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
Recommended replacement for: F35-NBR-18M |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 10F.035.001.01-18M
No CAD files available for this Product

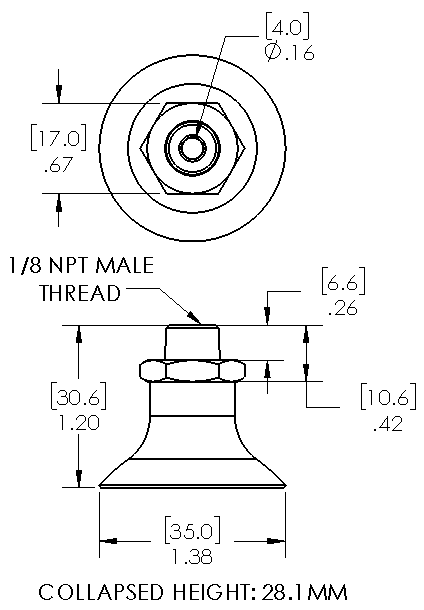

Dimensional drawing for Item: 10F.035.001.01-18M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.035.001.01-18M
Fitting Image for 401.033 |
General Specifications
Material: Aluminum
Weight: .0052(lbs)
Dimensions: 1/8" NPT male
Description: 1/8 male NPT barb fitting (MB/SB 32-62mm)
*This fitting is included with the cup(10F.035.001.01-18M)
|
Dimensional Fitting Drawing for 401.033 |
|
---|
