Quantity:
Item: 10F.035.001.02-14F - 35 mm flat suction cup with cleats, FDA Silicone,... (Full Description below)
|
Item#: 10F.035.001.02-14F Price: $8.33 ea.
|
35 mm flat suction cup with cleats, FDA Silicone, with 1/4 female NPT fitting
General Specifications
Style: Flat Cleats: Yes Material: Silicone Thread Size: 1/4" female Outside Diameter: 35.0mm Weight(lbs): .0245 Color: Translucent Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.035.001.02-14F
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
1.78 lbs. |
0.89 lbs. |
18"Hg |
5.36 lbs. |
2.68 lbs. |
27"Hg |
8.05 lbs. |
4.02 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
Recommended replacement for: F35-SIT-14F |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 10F.035.001.02-14F
No CAD files available for this Product

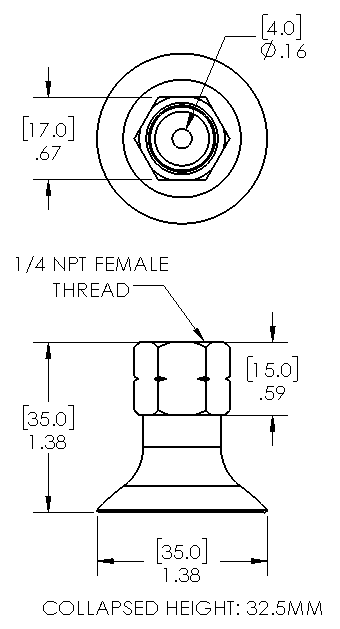

Dimensional drawing for Item: 10F.035.001.02-14F
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.035.001.02-14F
Fitting Image for 402.010 |
General Specifications
Material: Aluminum
Weight: .0076(lbs)
Dimensions: 1/4" NPT female
Description: 1/4 female NPT fitting (MB/SB 32-62mm)
*This fitting is included with the cup(10F.035.001.02-14F)
|
Dimensional Fitting Drawing for 402.010 |
|
---|
