Quantity:
Item: 10F.030.002.02-14M - 30 mm flat suction cup with cleats, FDA Silicone,... (Full Description below)
|
Item#: 10F.030.002.02-14M Price: $8.14 ea.
|

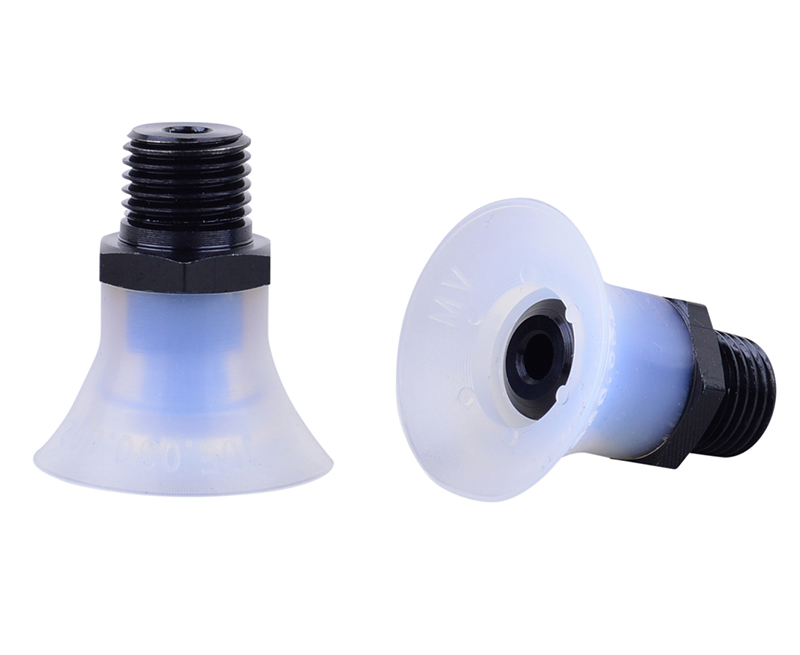

30 mm flat suction cup with cleats, FDA Silicone, with 1/4 male NPT fitting
General Specifications
Style: Flat Cleats: Yes Material: Silicone Thread Size: 1/4" male Outside Diameter: 30.0mm Weight(lbs): .0195 Color: Translucent Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.030.002.02-14M
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
1.31 lbs. |
0.65 lbs. |
18"Hg |
3.94 lbs. |
1.97 lbs. |
27"Hg |
5.91 lbs. |
2.95 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 10F.030.002.02-14M
No CAD files available for this Product
Dimensional drawing for Item: 10F.030.002.02-14M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.030.002.02-14M
Fitting Image for 402.017 |
General Specifications
Material: Aluminum
Weight: .0160(lbs)
Dimensions: 1/4" Male NPT
Description: 1/4 male NPT fitting (MB/SB 32-62mm)
*This fitting is included with the cup(10F.030.002.02-14M)
|
Dimensional Fitting Drawing for 402.017 |
|
---|
