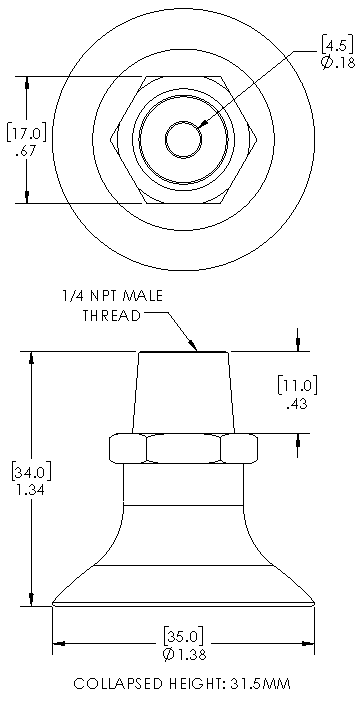

Product DetailsDimensional DrawingParts & Accessories
Quantity:

Item: 10F.035.001.02-14M - 35 mm flat suction cup with cleats, FDA Silicone, wit... (Full Description below)
10F.035.001.02-14M


Item#: 10F.035.001.02-14M
Price: $8.25 ea.

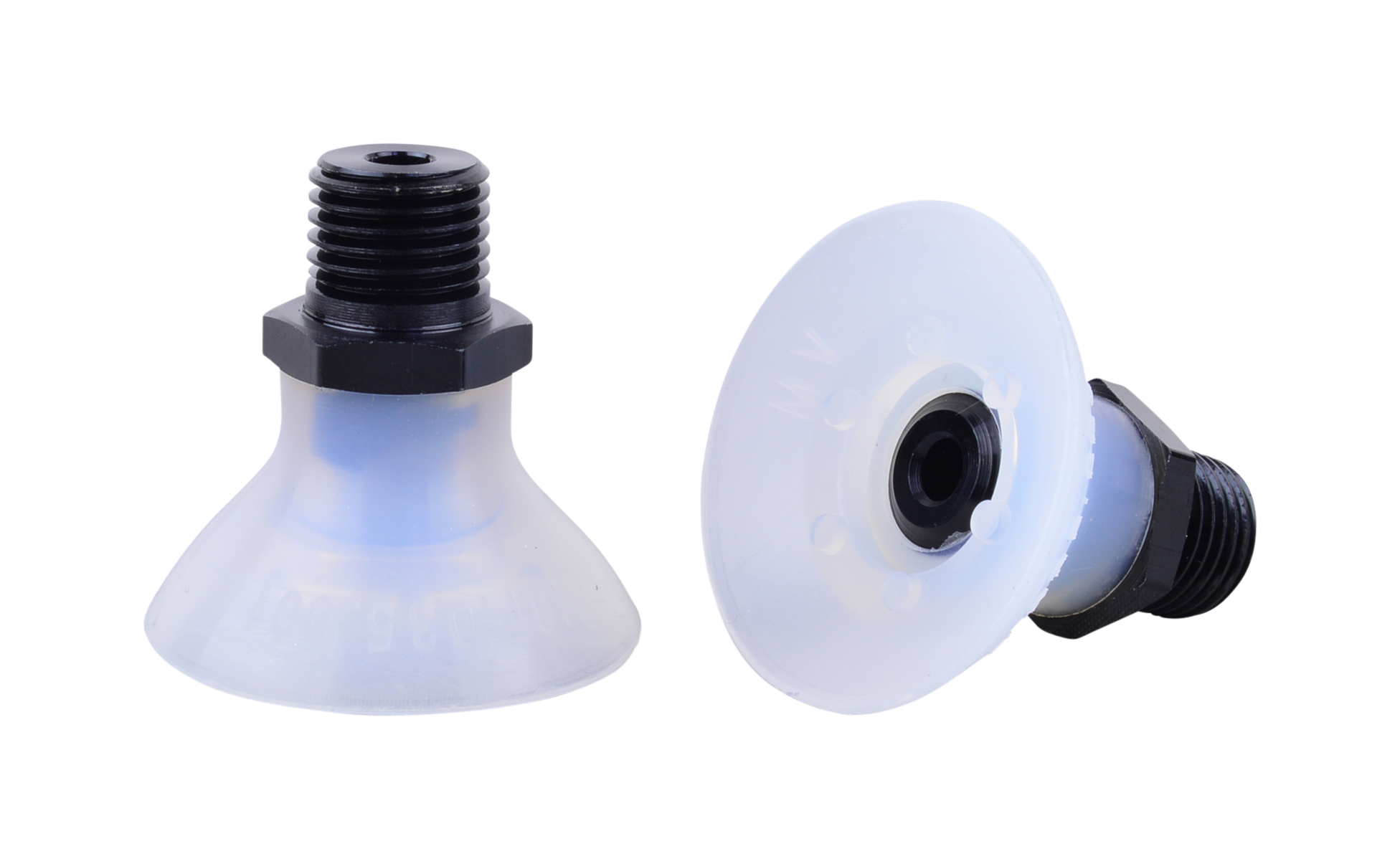

35 mm flat suction cup with cleats, FDA Silicone, with 1/4 male NPT fitting

General Specifications

Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 1/4" male
Outside Diameter: 35.0mm
Weight(lbs): .0245
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.035.001.02-14M



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 1.78 lbs. 0.89 lbs.
18"Hg 5.36 lbs. 2.68 lbs.
27"Hg 8.05 lbs. 4.02 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
