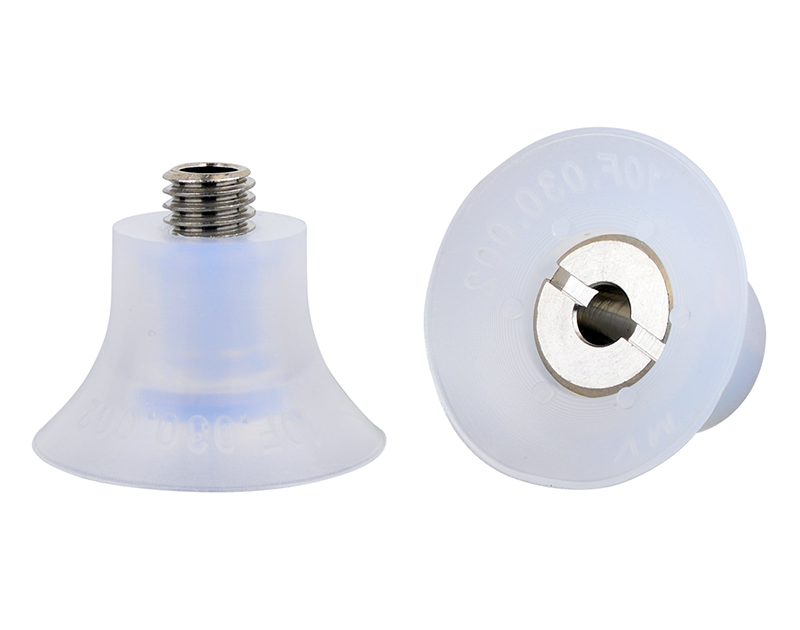

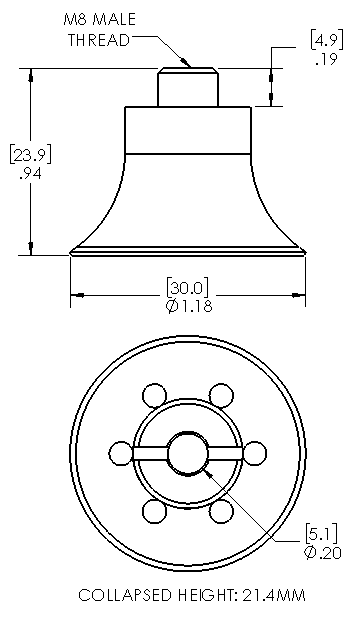

Home > Products > Suction Cups > 10F.030.002.02-M8 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.030.002.02-M8 - 30 mm flat suction cup with cleats, FDA Silicone,... (Full Description below) Item#: 10F.030.002.02-M8 Price: $7.11 ea. 30 mm flat suction cup with cleats, FDA Silicone, with M8 male fitting General Specifications Style: Flat Cleats: Yes Material: Silicone Thread Size: M8 male Outside Diameter: 30.0mm Weight(lbs): .0235 Color: Translucent Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item 10F.030.002.02-M8    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 1.31 lbs. 0.65 lbs. 18"Hg 3.94 lbs. 1.97 lbs. 27"Hg 5.91 lbs. 2.95 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 10F.030.002.02-M8 Related CAD files of Product Dimensional drawing for Item: 10F.030.002.02-M8                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.030.002.02-M8                                Fitting Image for VHS8 Item#: VHS8 compatible with cup #10F.030.002.02-M8 General Specifications Material: Aluminum Weight: .0145(lbs) Dimensions: M8 male Description: M8 hollow screw for series 2 suction cups *This fitting is included with the cup(10F.030.002.02-M8) Dimensional Fitting Drawing for VHS8
