Item: 10F.035.001.01-M8 - 35 mm flat suction cup with cleats, NBR, with M8 ... (Full Description below)
|
Item#: 10F.035.001.01-M8 Price: $6.32 ea.
|

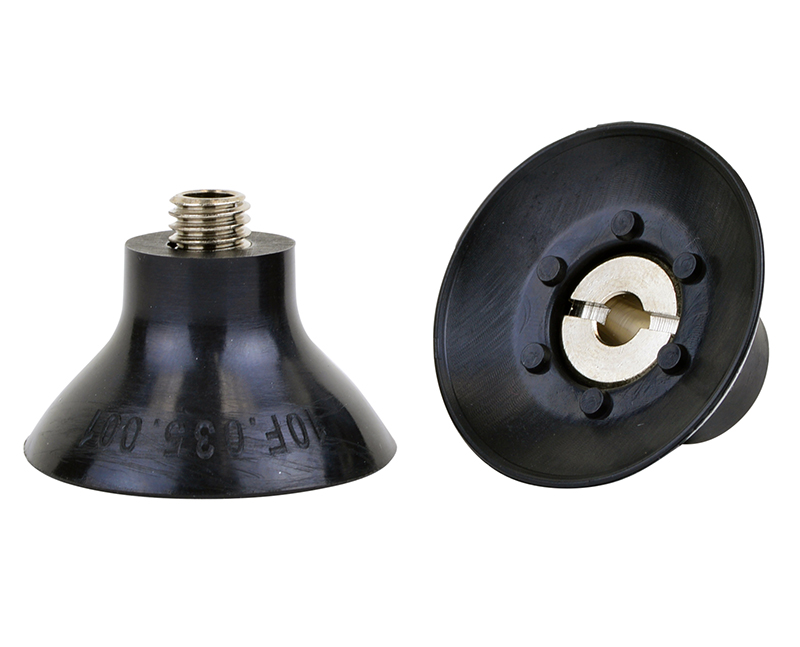

35 mm flat suction cup with cleats, NBR, with M8 male fitting
General Specifications
Style: Flat Cleats: Yes Material: NBR Thread Size: M8 male Outside Diameter: 35.0mm Weight(lbs): .0285 Color: Black Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.035.001.01-M8
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
1.78 lbs. |
0.89 lbs. |
18"Hg |
5.36 lbs. |
2.68 lbs. |
27"Hg |
8.05 lbs. |
4.02 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 10F.035.001.01-M8
No CAD files available for this Product
Dimensional drawing for Item: 10F.035.001.01-M8
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.035.001.01-M8
Fitting Image for VHS8 |
General Specifications
Material: Aluminum
Weight: .0145(lbs)
Dimensions: M8 male
Description: M8 hollow screw for series 2 suction cups
*This fitting is included with the cup(10F.035.001.01-M8)
|
Dimensional Fitting Drawing for VHS8 |
|
---|
