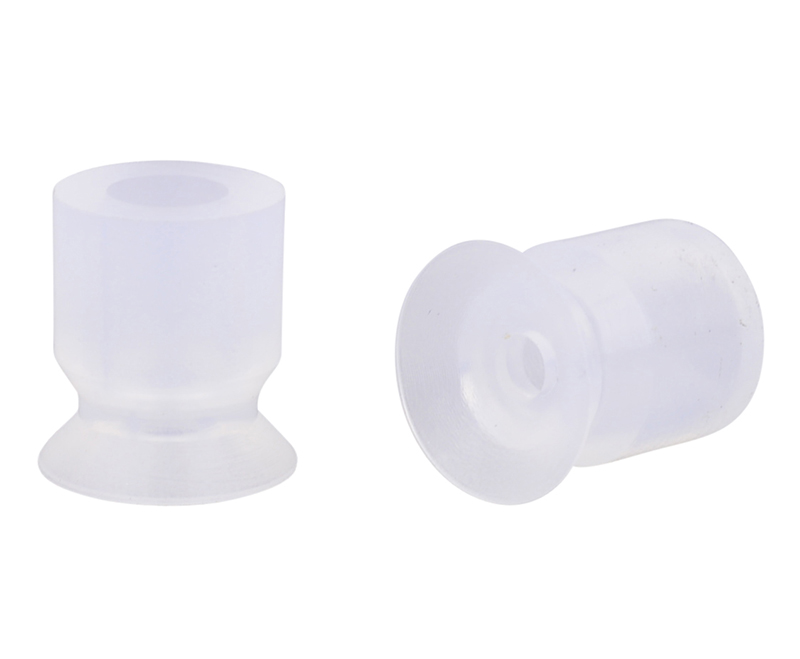

Item: 10F.010.002.02 - 10mm flat FDA Silicone suction cup

Item#: 10F.010.002.02
Price: $2.75 ea.

10mm flat FDA Silicone suction cup

General Specifications

Style: Flat
Cleats: No
Material: Silicone
Thread Size: None
Outside Diameter: 10.0mm
Weight(lbs): .0001
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.010.002.02


Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.14 lbs. 0.07 lbs.
18"Hg 0.43 lbs. 0.21 lbs.
27"Hg 0.65 lbs. 0.32 lbs.

***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: NO

img  Recommended replacement for: F10-SIT

Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)

Video of Product in Action

Vacmotion Product Video
No Videos Available for: 10F.010.002.02
