Quantity:
Item: 10F.010.002.01-G18M - 10mm flat suction cup, NBR, with G1/8 male fittin... (Full Description below)
|
Item#: 10F.010.002.01-G18M Price: $4.20 ea.
|

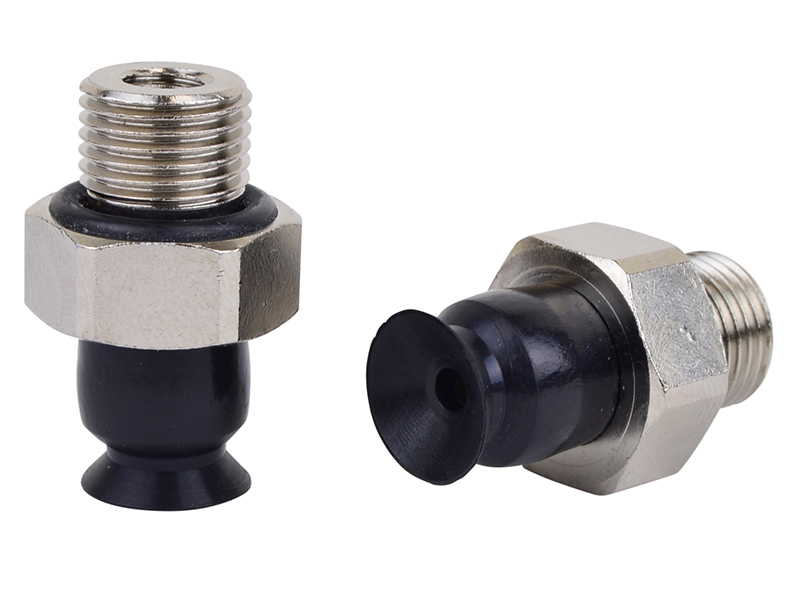

10mm flat suction cup, NBR, with G1/8 male fitting
General Specifications
Style: Flat Cleats: No Material: NBR Thread Size: 1/8" male Outside Diameter: 10.0mm Weight(lbs): .0086 Color: Black Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.010.002.01-G18M
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
0.14 lbs. |
0.07 lbs. |
18"Hg |
0.43 lbs. |
0.21 lbs. |
27"Hg |
0.65 lbs. |
0.32 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 10F.010.002.01-G18M
No CAD files available for this Product

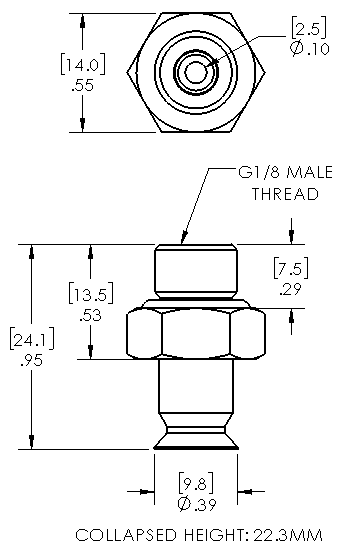

Dimensional drawing for Item: 10F.010.002.01-G18M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.010.002.01-G18M
Fitting Image for 401.002 |
General Specifications
Material: Aluminum
Weight: .0085(lbs)
Dimensions: G1/8" male
Description: G1/8 male barb fitting
*This fitting is included with the cup(10F.010.002.01-G18M)
|
Dimensional Fitting Drawing for 401.002 |
|
---|
