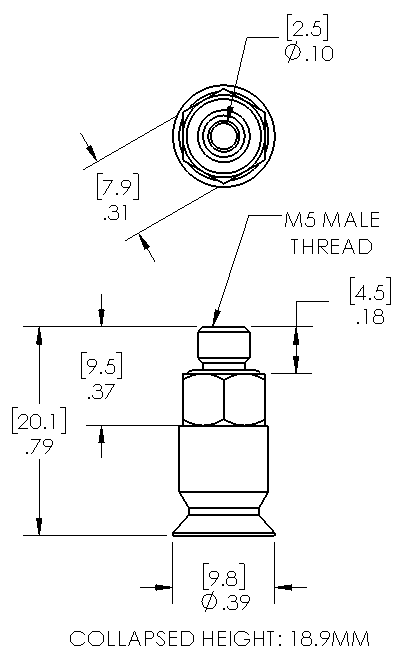

Product DetailsDimensional DrawingParts & Accessories
Quantity:

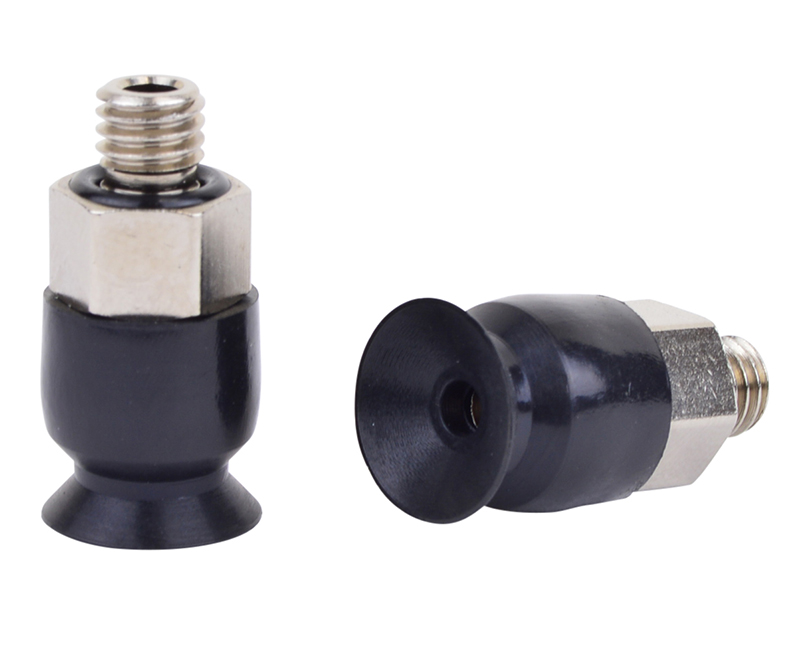

Item: 10F.010.002.01-M5 - 10mm flat suction cup, NBR, with M5 male fitting
10F.010.002.01-M5


Item#: 10F.010.002.01-M5
Price: $3.64 ea.





10mm flat suction cup, NBR, with M5 male fitting

General Specifications

Style: Flat
Cleats: No
Material: NBR
Thread Size: M5 male
Outside Diameter: 10.0mm
Weight(lbs): .0081
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.010.002.01-M5



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.14 lbs. 0.07 lbs.
18"Hg 0.43 lbs. 0.21 lbs.
27"Hg 0.65 lbs. 0.32 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C)
