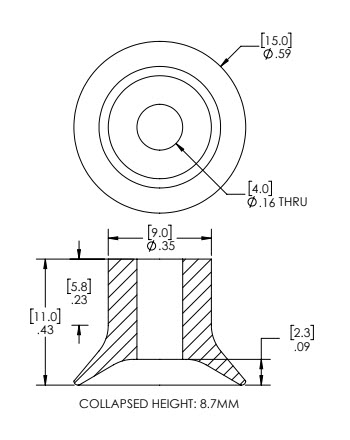

Product DetailsDimensional DrawingParts & Accessories
Quantity:

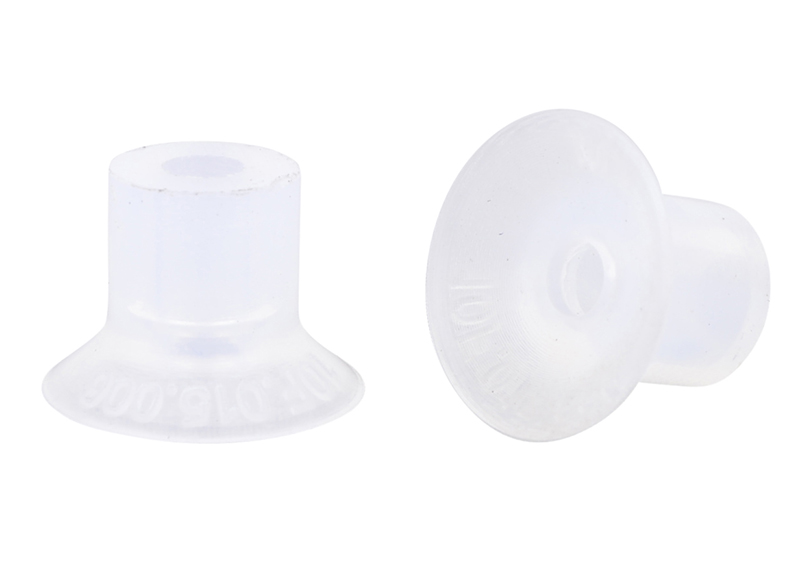

Item: 10F.015.006.02 - 15 mm flat suction cup, FDA Silicone
10F.015.006.02


Item#: 10F.015.006.02
Price: $2.75 ea.





15 mm flat suction cup, FDA Silicone

General Specifications

Style: Flat
Cleats: No
Material: Silicone
Thread Size: None
Outside Diameter: 15.0mm
Weight(lbs): .00010
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.015.006.02



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.32 lbs. 0.16 lbs.
18"Hg 0.98 lbs. 0.49 lbs.
27"Hg 1.47 lbs. 0.73 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: NO

img  Recommended replacement for: F15-SIT, VP15SIT5


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)

Video of Product in Action

Vacmotion Product Video
No Videos Available for: 10F.015.006.02
