Item: 10F.015.006.02-M5 - 15 mm flat suction cup, FDA Silicone, with M5 mal... (Full Description below)
|
Item#: 10F.015.006.02-M5 Price: $4.71 ea.
|

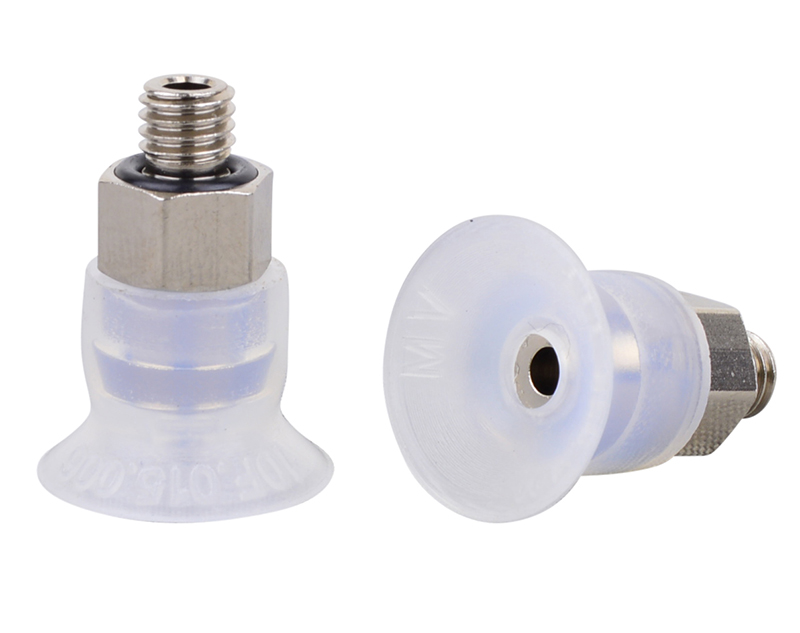

15 mm flat suction cup, FDA Silicone, with M5 male fitting
General Specifications
Style: Flat Cleats: No Material: Silicone Thread Size: M5 male Outside Diameter: 15.0mm Weight(lbs): .0090 Color: Translucent Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.015.006.02-M5
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
0.32 lbs. |
0.16 lbs. |
18"Hg |
0.98 lbs. |
0.49 lbs. |
27"Hg |
1.47 lbs. |
0.73 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 10F.015.006.02-M5
Related CAD files of Product
Dimensional drawing for Item: 10F.015.006.02-M5
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.015.006.02-M5
No parts or accessories related to this item were found.
