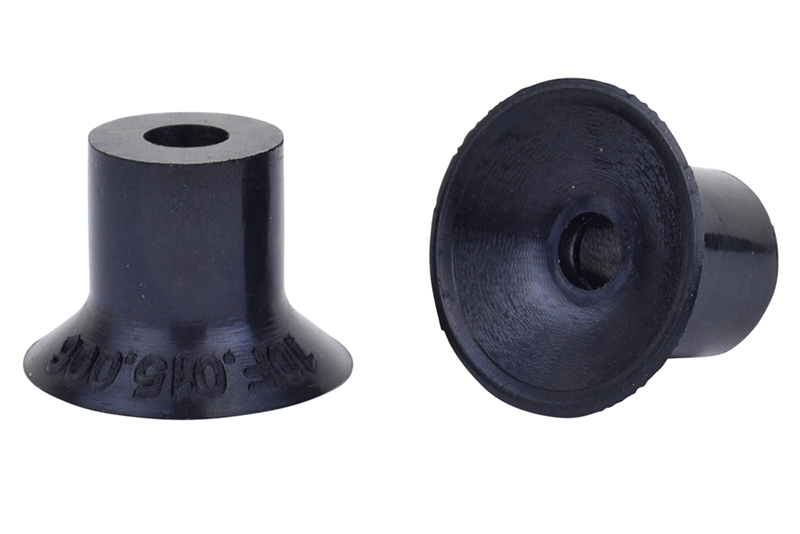

Item: 10F.015.006.01 - 15mm flat NBR suction cup
10F.015.006.01


Item#: 10F.015.006.01
Price: $1.90 ea.





15mm flat NBR suction cup

General Specifications

Style: Flat
Cleats: No
Material: NBR
Thread Size: None
Outside Diameter: 15.0mm
Weight(lbs): .0010
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.015.006.01



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.32 lbs. 0.16 lbs.
18"Hg 0.98 lbs. 0.49 lbs.
27"Hg 1.47 lbs. 0.73 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: NO

img  Recommended replacement for: F15-NBR, VP15NBR


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C)
