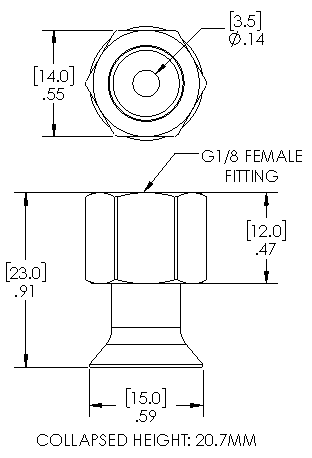

Product DetailsDimensional DrawingParts & Accessories
Quantity:

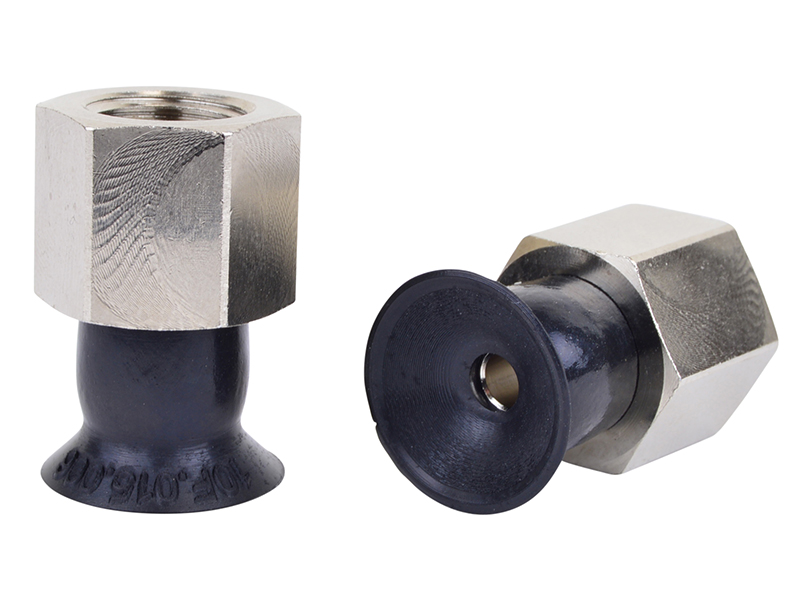

Item: 10F.015.006.01-G18F - 15mm flat NBR suction cup with G1/8 female fitting
10F.015.006.01-G18F


Item#: 10F.015.006.01-G18F
Price: $4.00 ea.





15mm flat NBR suction cup with G1/8 female fitting

General Specifications

Style: Flat
Cleats: No
Material: NBR
Thread Size: 1/8" female
Outside Diameter: 15.0mm
Weight(lbs): .0095
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.015.006.01-G18F



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.32 lbs. 0.16 lbs.
18"Hg 0.98 lbs. 0.49 lbs.
27"Hg 1.47 lbs. 0.73 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C)
