Quantity:

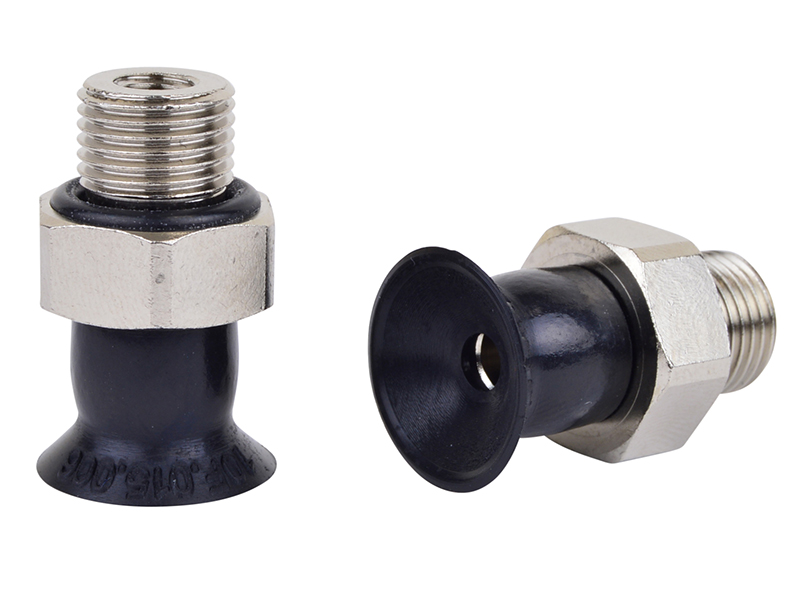

Item: 10F.015.006.01-G18M - 15mm flat NBR suction cup with G1/8 male fitting
| |
Item#: 10F.015.006.01-G18M
Price: $4.20 ea.
|
15mm flat NBR suction cup with G1/8 male fitting
General Specifications
Style: Flat
Cleats: No
Material: NBR
Thread Size: 1/8" male
Outside Diameter: 15.0mm
Weight(lbs): .0095
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.015.006.01-G18M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.32 lbs. |
0.16 lbs. |
| 18"Hg |
0.98 lbs. |
0.49 lbs. |
| 27"Hg |
1.47 lbs. |
0.73 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 10F.015.006.01-G18M
Related CAD files of Product

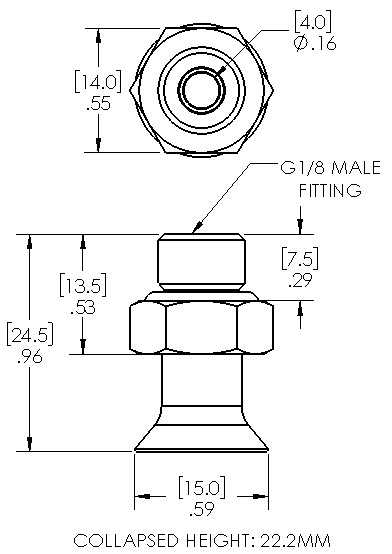

Dimensional drawing for Item: 10F.015.006.01-G18M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.015.006.01-G18M
Fitting Image for 401.002 |
General Specifications
Material: Aluminum
Weight: .0085(lbs)
Dimensions: G1/8" male
Description: G1/8 male barb fitting
*This fitting is included with the cup(10F.015.006.01-G18M)
|
Dimensional Fitting Drawing for 401.002 |
|
|---|
