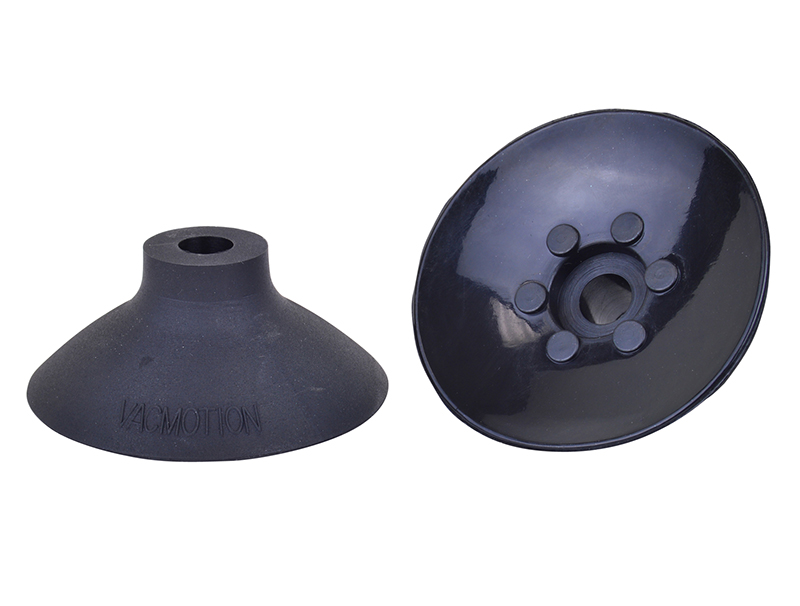

Item: 10F.052.001.01 - 52mm flat NBR suction cup with cleats
10F.052.001.01


Item#: 10F.052.001.01
Price: $4.00 ea.





52mm flat NBR suction cup with cleats

General Specifications

Style: Flat
Cleats: Yes
Material: NBR
Thread Size: None
Outside Diameter: 52.0mm
Weight(lbs): .0290
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.052.001.01



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 3.95 lbs. 1.97 lbs.
18"Hg 11.85 lbs. 5.92 lbs.
27"Hg 17.77 lbs. 8.88 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: NO


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C)

Video of Product in Action

Vacmotion Product Video
No Videos Available for: 10F.052.001.01
