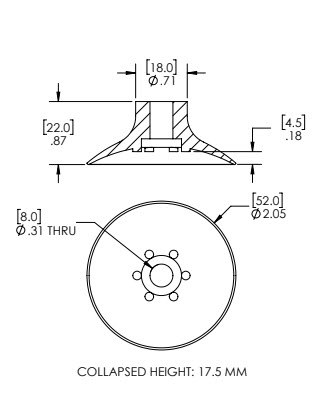

Product DetailsDimensional DrawingParts & Accessories
Quantity:

Item: 10F.052.001.02 - 52mm flat FDA Silicone suction cup with cleats
10F.052.001.02


Item#: 10F.052.001.02
Price: $7.00 ea.

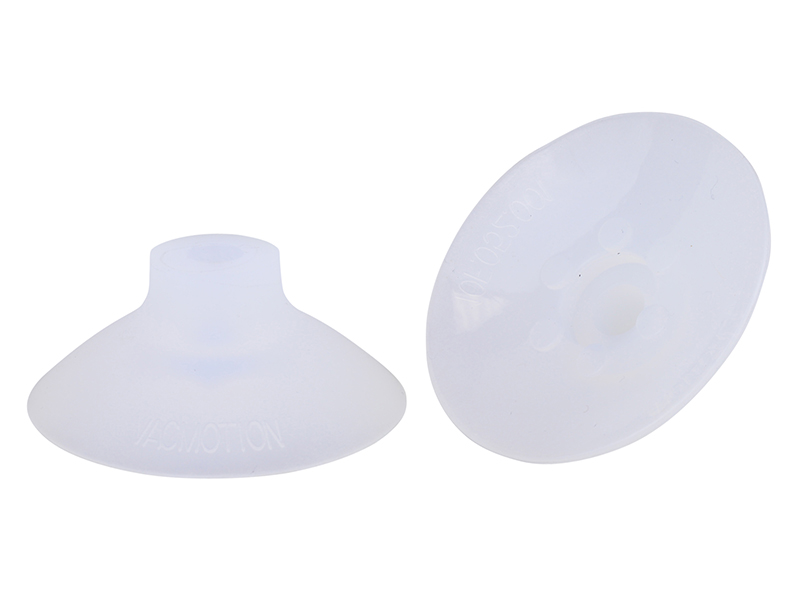

52mm flat FDA Silicone suction cup with cleats

General Specifications

Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: None
Outside Diameter: 52.0mm
Weight(lbs): .0290
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.052.001.02



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 3.95 lbs. 1.97 lbs.
18"Hg 11.85 lbs. 5.92 lbs.
27"Hg 17.77 lbs. 8.88 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: NO


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
