Item: 10F.025.004.09-M5 - 25mm flat HNBR suction cup with M5 male fitting
|
Item#: 10F.025.004.09-M5 Price: $5.76 ea.
|

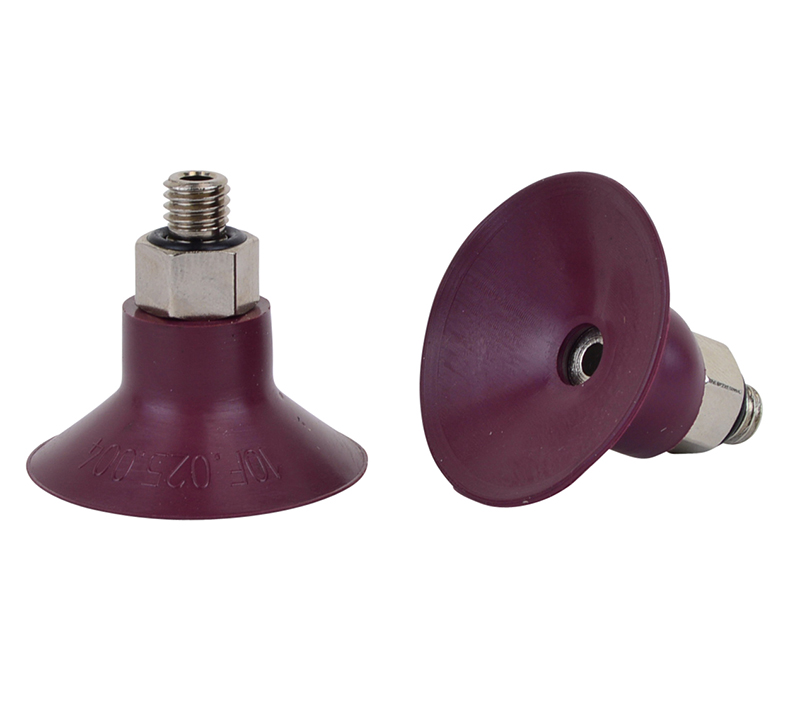

25mm flat HNBR suction cup with M5 male fitting
General Specifications
Style: Flat Cleats: Material: HNBR Thread Size: M5 male Outside Diameter: 25.0mm Weight(lbs): .0105 Color: Dark Red Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.025.004.09-M5
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
0.91 lbs. |
0.45 lbs. |
18"Hg |
2.73 lbs. |
1.36 lbs. |
27"Hg |
4.10 lbs. |
2.05 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
HNBR |
Good |
Excellent |
Good |
-22 to 320 °F (-40 to 160 °C) |
Video of Product in Action
No Videos Available for: 10F.025.004.09-M5
No CAD files available for this Product

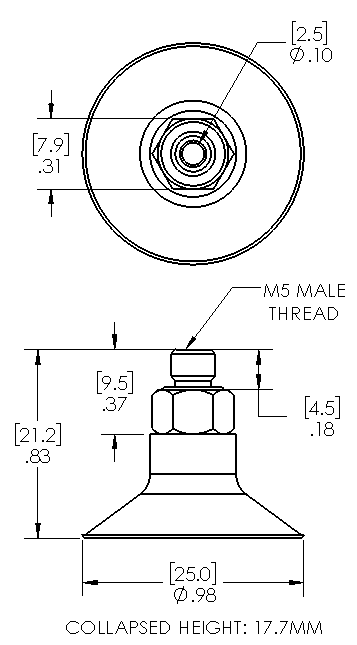

Dimensional drawing for Item: 10F.025.004.09-M5
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.025.004.09-M5
No parts or accessories related to this item were found.
