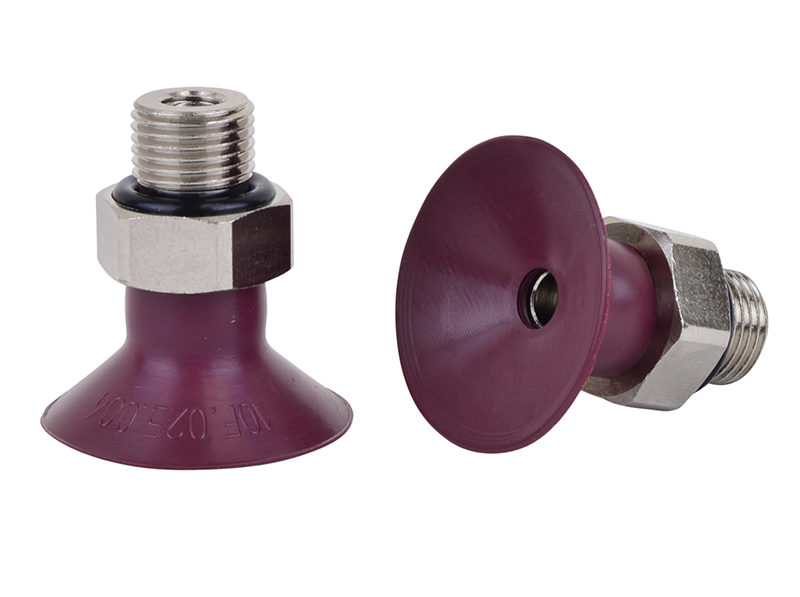

Home > Products > Suction Cups > 10F.025.004.09-G18M Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.025.004.09-G18M - 25mm flat HNBR suction cup with G 1/8 male fittin... (Full Description below) Item#: 10F.025.004.09-G18M Price: $6.14 ea. 25mm flat HNBR suction cup with G 1/8 male fitting General Specifications Style: Flat Cleats: Material: HNBR Thread Size: 1/8" male Outside Diameter: 25.0mm Weight(lbs): .011 Color: Dark Red Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item 10F.025.004.09-G18M    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.91 lbs. 0.45 lbs. 18"Hg 2.73 lbs. 1.36 lbs. 27"Hg 4.10 lbs. 2.05 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range HNBR Good Excellent Good -22 to 320 °F (-40 to 160 °C) Video of Product in Action No Videos available for: 10F.025.004.09-G18M Related CAD files of Product Dimensional drawing for Item: 10F.025.004.09-G18M                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.025.004.09-G18M                                Fitting Image for 401.002 Item#: 401.002 compatible with cup #10F.025.004.09-G18M General Specifications Material: Aluminum Weight: .0085(lbs) Dimensions: G1/8" male Description: G1/8 male barb fitting *This fitting is included with the cup(10F.025.004.09-G18M) Dimensional Fitting Drawing for 401.002
