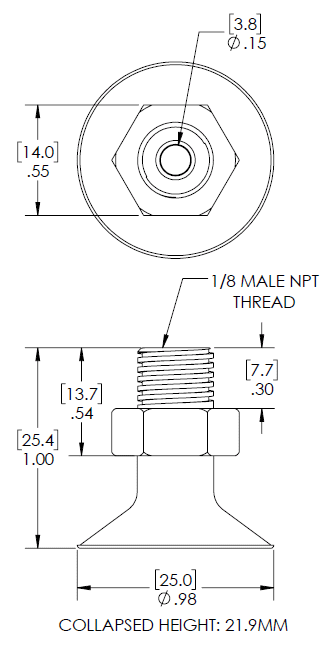

Product DetailsDimensional DrawingParts & Accessories

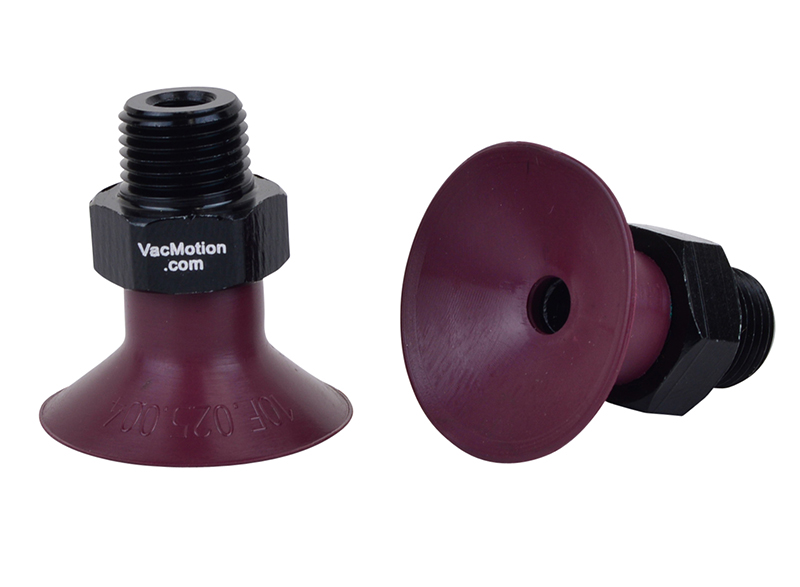

Item: 10F.025.004.09-18M - 25mm flat HNBR suction cup with 1/8 male NPT fitting

Item#: 10F.025.004.09-18M
Price: $5.85 ea.

25mm flat HNBR suction cup with 1/8 male NPT fitting

General Specifications

Style: Flat
Material: HNBR
Thread Size: 1/8" male
Outside Diameter: 25.0mm
Weight(lbs): .0105
Color: Dark Red
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.025.004.09-18M


Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.91 lbs. 0.45 lbs.
18"Hg 2.73 lbs. 1.36 lbs.
27"Hg 4.10 lbs. 2.05 lbs.

***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
HNBR Good Excellent Good -22 to 320 °F (-40 to 160 °C)
