Item: 10F.052.001.01-G18M - 52mm flat NBR suction cup with cleats and G 1/8 male ... (Full Description below)

Item#: 10F.052.001.01-G18M
Price: $8.08 ea.

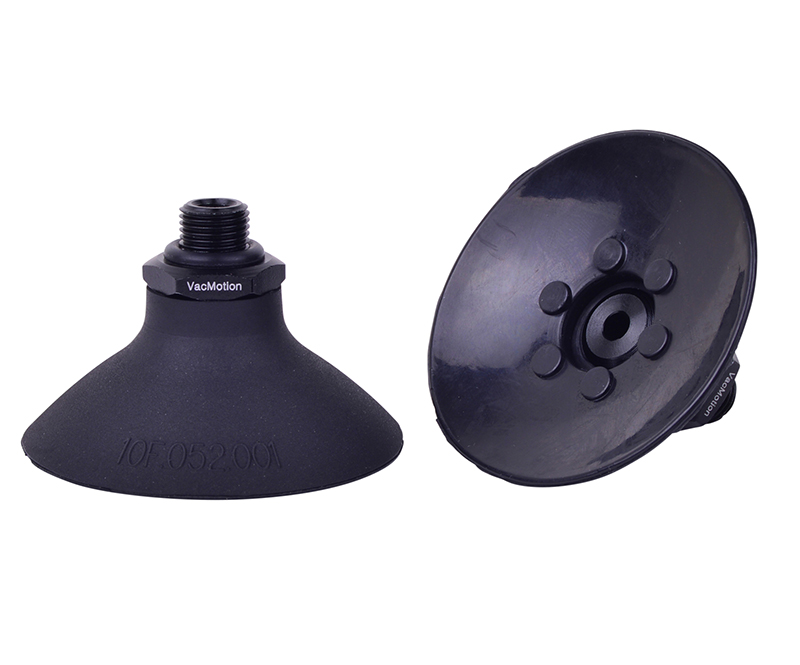

52mm flat NBR suction cup with cleats and G 1/8 male fitting

General Specifications

Style: Flat
Cleats: Yes
Material: NBR
Thread Size: 1/8" male
Outside Diameter: 52.0mm
Weight(lbs): .0342
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.052.001.01-G18M


Level of Vacuum (inHg) Horizontal Vertical
6"Hg 3.95 lbs. 1.97 lbs.
18"Hg 11.85 lbs. 5.92 lbs.
27"Hg 17.77 lbs. 8.88 lbs.

***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

Material Specifications
