Item: 10F.052.001.01-18F - 52mm flat NBR suction cup with cleats and 1/8 fem... (Full Description below)
| |
Item#: 10F.052.001.01-18F
Price: $7.88 ea.
|

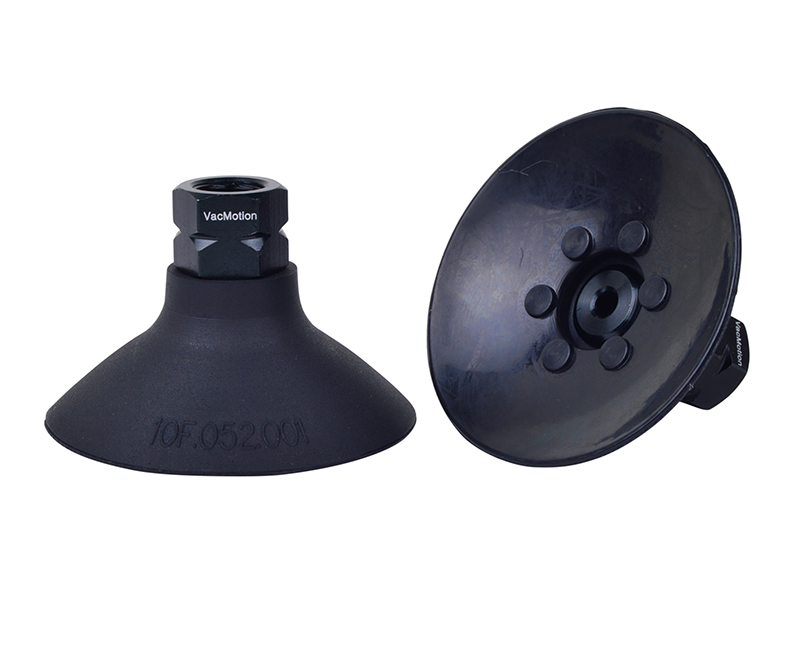

52mm flat NBR suction cup with cleats and 1/8 female fitting
General Specifications
Style: Flat
Cleats: Yes
Material: NBR
Thread Size: 1/8" female
Outside Diameter: 52.0mm
Weight(lbs): .0342
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.052.001.01-18F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
3.95 lbs. |
1.97 lbs. |
| 18"Hg |
11.85 lbs. |
5.92 lbs. |
| 27"Hg |
17.77 lbs. |
8.88 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 10F.052.001.01-18F
Related CAD files of Product

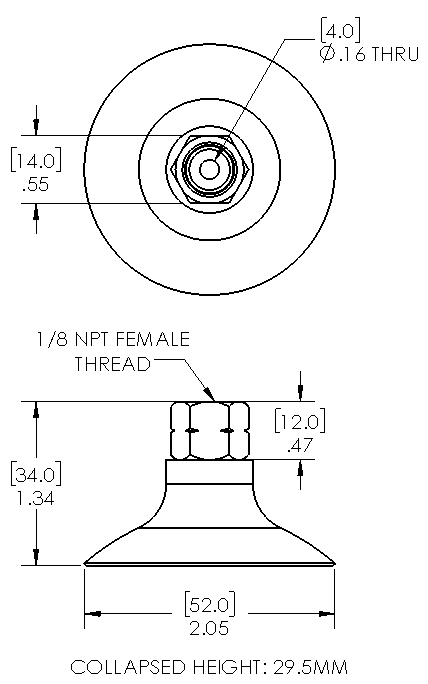

Dimensional drawing for Item: 10F.052.001.01-18F
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.052.001.01-18F
Fitting Image for 401.035 |
General Specifications
Material: Aluminum
Weight: .0052(lbs)
Dimensions: 1/8" NPT female
Description: 1/8 female NPT fitting (MB/SB 32-62mm)
*This fitting is included with the cup(10F.052.001.01-18F)
|
Dimensional Fitting Drawing for 401.035 |
|
|---|
