Item: 10F.052.001.02-18M - 52mm flat Silicone suction cup with cleats and 1/... (Full Description below)
|
Item#: 10F.052.001.02-18M Price: $11.63 ea.
|

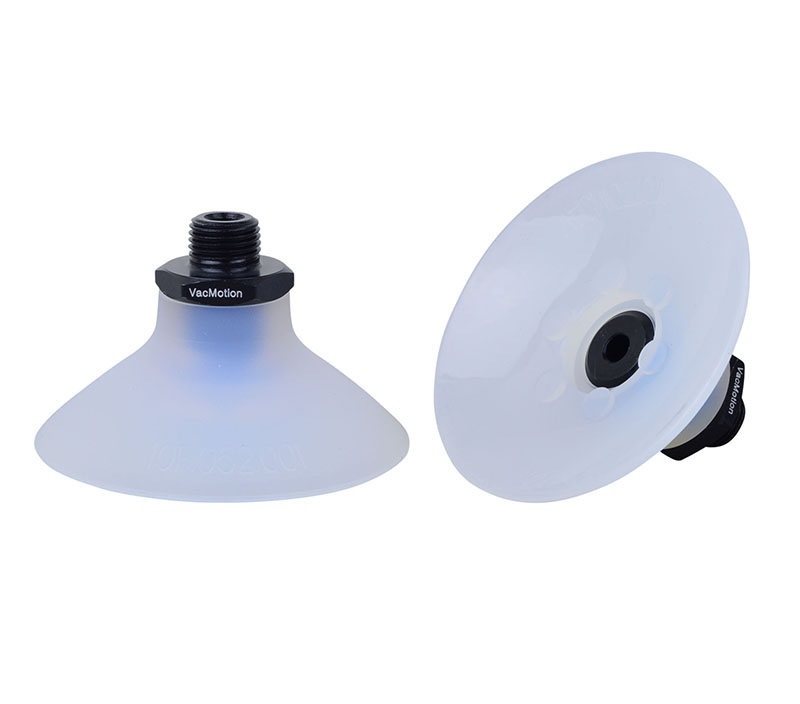

52mm flat Silicone suction cup with cleats and 1/8 male fitting
General Specifications
Style: Flat Cleats: Yes Material: Silicone Thread Size: 1/8" male Outside Diameter: 52.0mm Weight(lbs): .0342 Color: Translucent Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.052.001.02-18M
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
3.95 lbs. |
1.97 lbs. |
18"Hg |
11.85 lbs. |
5.92 lbs. |
27"Hg |
17.77 lbs. |
8.88 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Video of Product in Action
No Videos Available for: 10F.052.001.02-18M
Related CAD files of Product

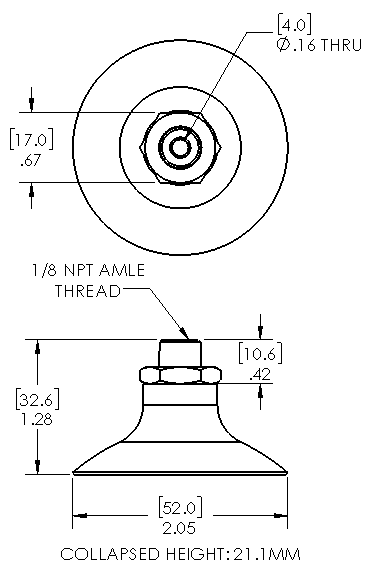

Dimensional drawing for Item: 10F.052.001.02-18M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.052.001.02-18M
Fitting Image for 401.033 |
General Specifications
Material: Aluminum
Weight: .0052(lbs)
Dimensions: 1/8" NPT male
Description: 1/8 male NPT barb fitting (MB/SB 32-62mm)
*This fitting is included with the cup(10F.052.001.02-18M)
|
Dimensional Fitting Drawing for 401.033 |
|
---|
