Item: 10F.052.001.02-14M - 52mm flat Silicone suction cup with cleats and 1/4 ma... (Full Description below)

Item#: 10F.052.001.02-14M
Price: $10.50 ea.

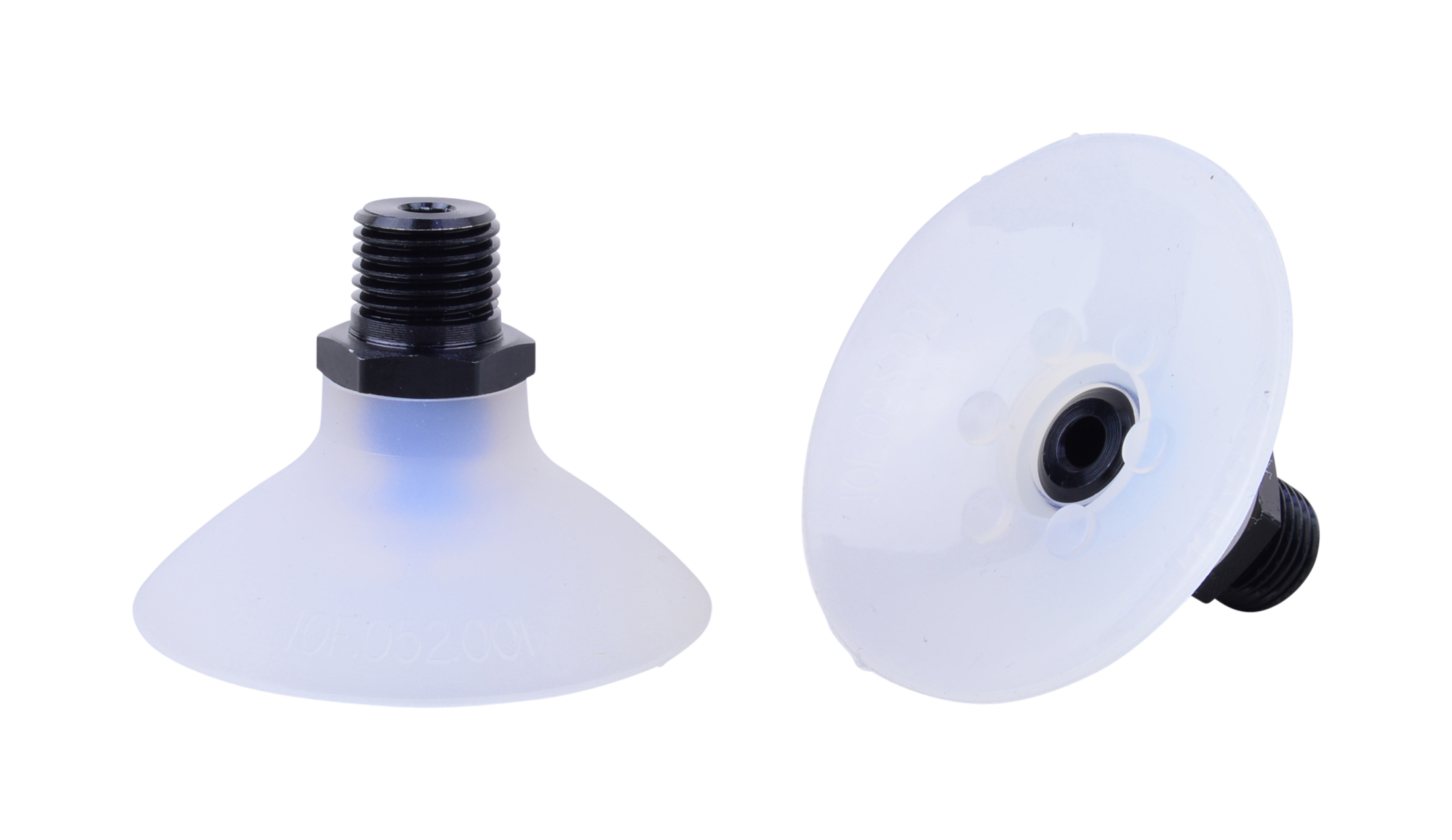

52mm flat Silicone suction cup with cleats and 1/4 male fitting

General Specifications

Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 1/4" male
Outside Diameter: 52.0mm
Weight(lbs): .0045
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.052.001.02-14M


Level of Vacuum (inHg) Horizontal Vertical
6"Hg 3.95 lbs. 1.97 lbs.
18"Hg 11.85 lbs. 5.92 lbs.
27"Hg 17.77 lbs. 8.88 lbs.

***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

Material Specifications
