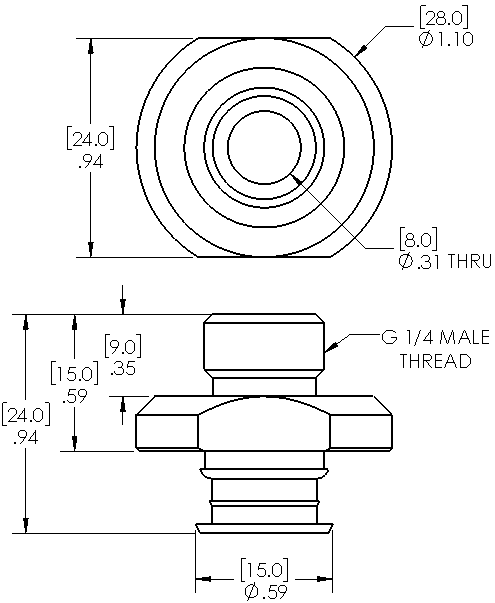

Product DetailsDimensional DrawingParts & Accessories
Quantity:

Item: 35B.025.005.02-G14MS - 25mm 3.5 bellows modular bag handling suction cup wit... (Full Description below)
35B.025.005.02-G14MS


Item#: 35B.025.005.02-G14MS
Price: $20.21 ea.

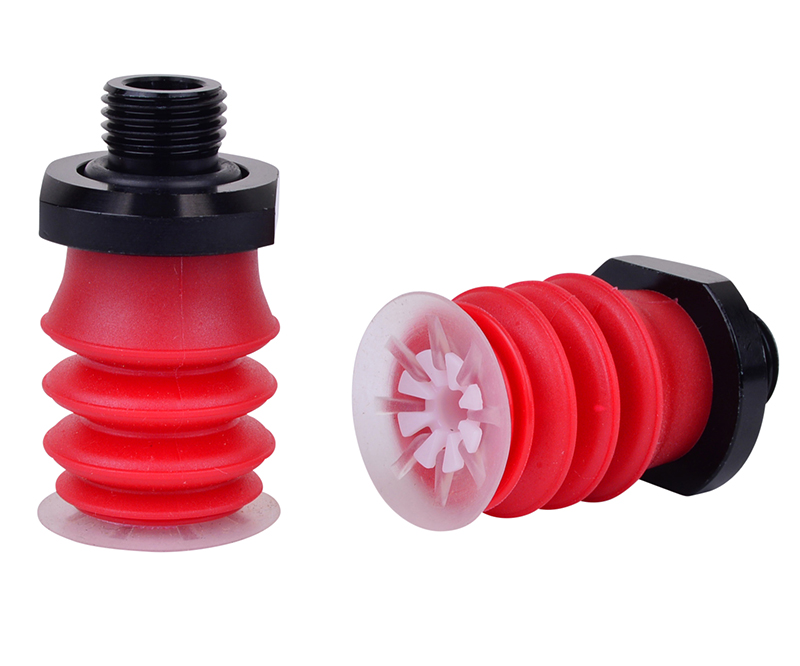

25mm 3.5 bellows modular bag handling suction cup with G1/4 male fitting. Silicone lip.

General Specifications

Style: Bellows
Cleats: Yes
Material: Silicone
Thread Size: 1/4" male
Bellows: 3.5
Outside Diameter: 25.0mm
Weight(lbs): .0250
Color: Red
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 35B.025.005.02-G14MS



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.91 lbs. 0.45 lbs.
18"Hg 2.73 lbs. 1.36 lbs.
27"Hg 4.10 lbs. 2.05 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
