Item: 35B.034.001.02-G18F - 34mm 3.5 bellows modular bag handling suction cup... (Full Description below)

Item#: 35B.034.001.02-G18F
Price: $23.48 ea.

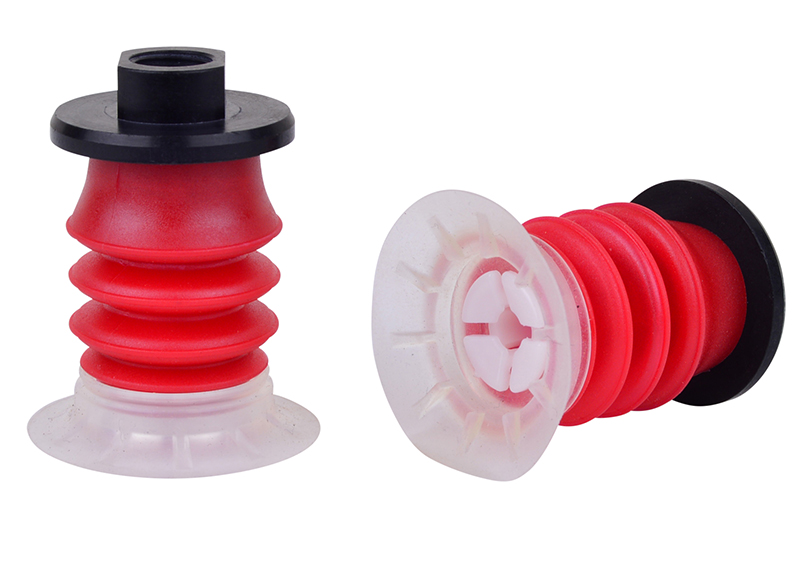

34mm 3.5 bellows modular bag handling suction cup with G1/8 female fitting. Silicone lip.

General Specifications

Style: Bellows
Cleats: Yes
Material: Silicone
Thread Size: 1/8" female
Bellows: 3.5
Outside Diameter: 34.0mm
Weight(lbs): .0032
Color: Red
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 35B.034.001.02-G18F


Level of Vacuum (inHg) Horizontal Vertical
6"Hg 1.68 lbs. 0.84 lbs.
18"Hg 5.06 lbs. 2.53 lbs.
27"Hg 7.59 lbs. 3.79 lbs.

***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
