Item: 35B.034.001.02-G14MS - 34mm 3.5 bellows modular bag handling suction cup... (Full Description below)
|
Item#: 35B.034.001.02-G14MS Price: $24.65 ea.
|

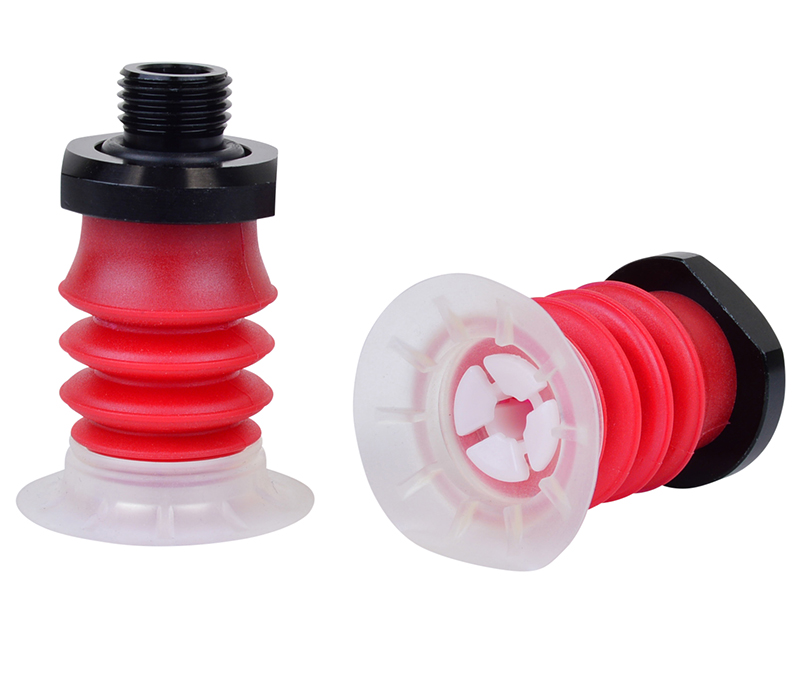

34mm 3.5 bellows modular bag handling suction cup with G1/4 male fitting. Silicone lip.
General Specifications
Style: Bellows Cleats: Yes Material: Silicone Thread Size: 1/4" male Bellows: 3.5 Outside Diameter: 34.0mm Weight(lbs): .0280 Color: Red Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 35B.034.001.02-G14MS
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
1.68 lbs. |
0.84 lbs. |
18"Hg |
5.06 lbs. |
2.53 lbs. |
27"Hg |
7.59 lbs. |
3.79 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 35B.034.001.02-G14MS
Related CAD files of Product
Dimensional drawing for Item: 35B.034.001.02-G14MS
Click on the image to enlarge
Parts and accessories for Suction Cup: 35B.034.001.02-G14MS
Fitting Image for 402.015 |
General Specifications
Material: Aluminum
Weight: .025(lbs)
Dimensions: G1/4" male
Description: G1/4 male fitting for 50 series cups
*This fitting is included with the cup(35B.034.001.02-G14MS)
|
Dimensional Fitting Drawing for 402.015 |
|
---|
