Item: 35B.034.001.02-38MS - 34mm 3.5 bellows modular bag handling suction cup... (Full Description below)
| |
Item#: 35B.034.001.02-38MS
Price: $24.65 ea.
|

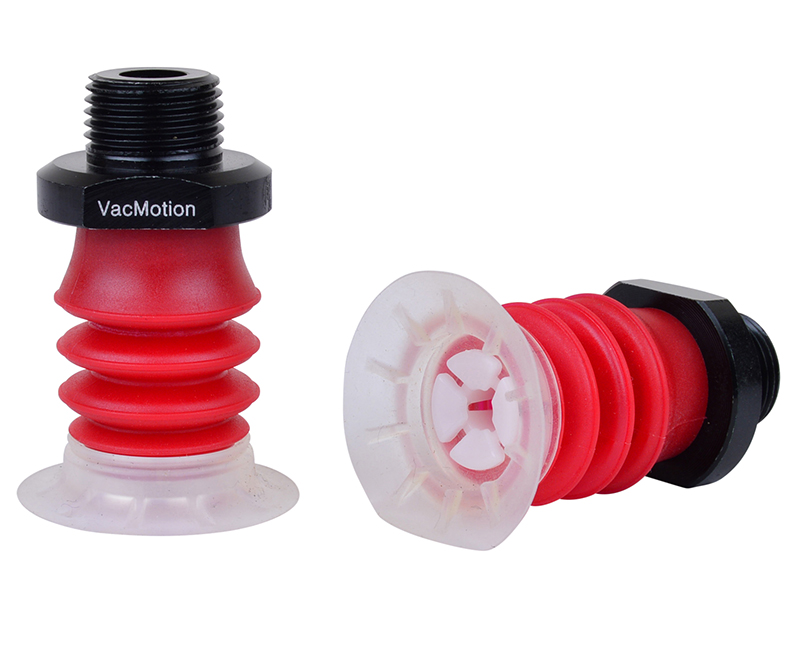

34mm 3.5 bellows modular bag handling suction cup with 3/8 male NPT fitting. Silicone lip.
General Specifications
Style: Bellows
Cleats: Yes
Material: Silicone
Thread Size: 3/8" male
Bellows: 3.5
Outside Diameter: 34.0mm
Weight(lbs): .0440
Color: Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 35B.034.001.02-38MS
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.68 lbs. |
0.84 lbs. |
| 18"Hg |
5.06 lbs. |
2.53 lbs. |
| 27"Hg |
7.59 lbs. |
3.79 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 35B.034.001.02-38MS
Related CAD files of Product
Dimensional drawing for Item: 35B.034.001.02-38MS
Click on the image to enlarge
Parts and accessories for Suction Cup: 35B.034.001.02-38MS
Fitting Image for 403.012 |
General Specifications
Material: Nickel Plated Brass
Weight: .0310(lbs)
Dimensions: 3/8" Male NPT

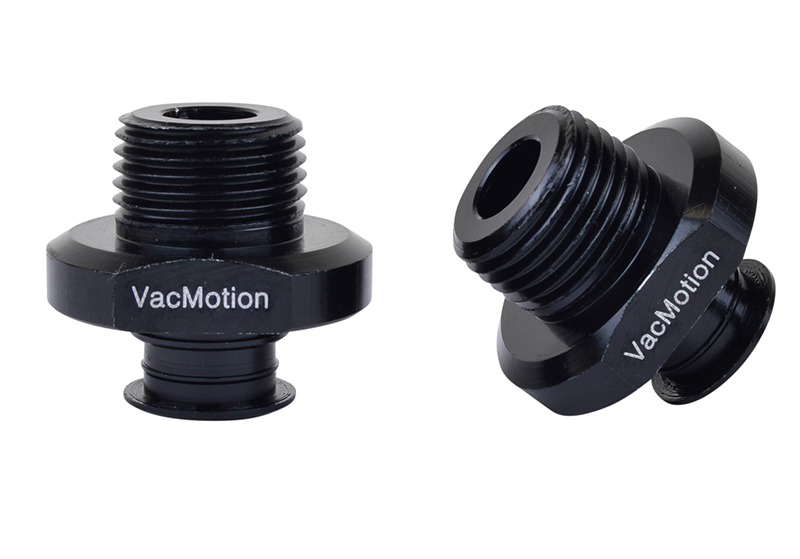

Description: 3/8 male NPT fitting with filter screen for P series 50 cups
*This fitting is included with the cup(35B.034.001.02-38MS)
|
Dimensional Fitting Drawing for 403.012 |
|
|---|
