Item: 35B.041.001.02-G18F - 41mm 3.5 bellows modular bag handling suction cup wit... (Full Description below)
35B.041.001.02-G18F


Item#: 35B.041.001.02-G18F
Price: $25.85 ea.

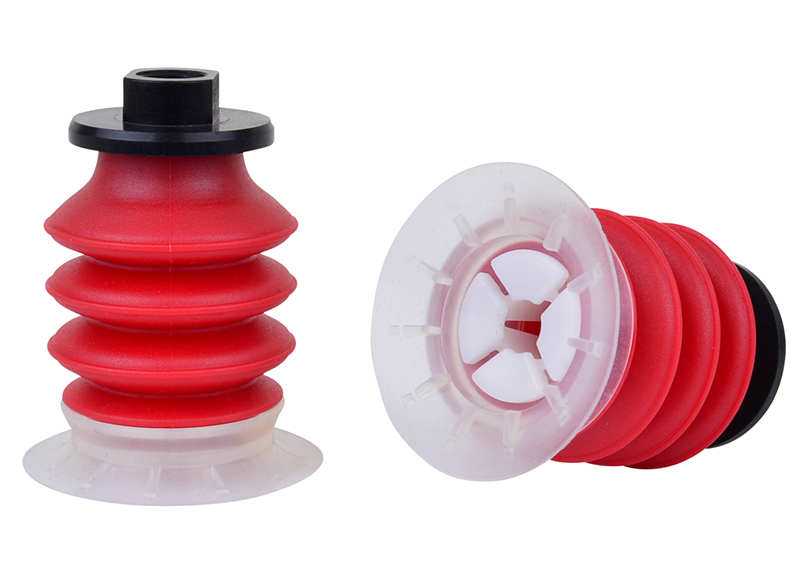

41mm 3.5 bellows modular bag handling suction cup with G1/8 female fitting. Silicone lip.

General Specifications

Style: Bellows
Cleats: Yes
Material: Silicone
Thread Size: 1/8" female
Bellows: 3.5
Outside Diameter: 41.0mm
Weight(lbs): .0465
Color: Red
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 35B.041.001.02-G18F



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 2.45 lbs. 1.22 lbs.
18"Hg 7.36 lbs. 3.68 lbs.
27"Hg 11.05 lbs. 5.52 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
