Item: 35B.048.001.02-G14FS - 48mm 3.5 bellows modular bag handling suction cup wit... (Full Description below)
35B.048.001.02-G14FS


Item#: 35B.048.001.02-G14FS
Price: $29.29 ea.

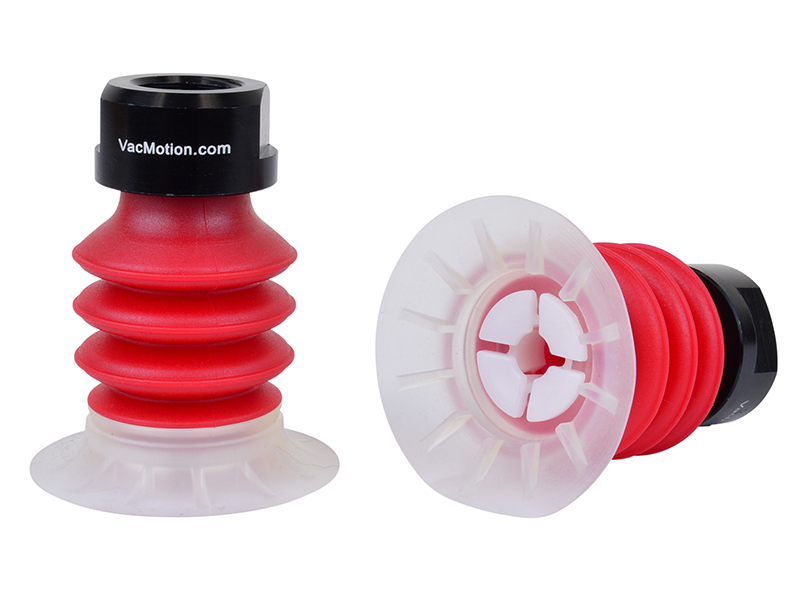

48mm 3.5 bellows modular bag handling suction cup with G1/4 female fitting. Silicone lip.

General Specifications

Style: Bellows
Cleats: Yes
Material: Silicone
Thread Size: 1/4" female
Bellows: 3.5
Outside Diameter: 48.0mm
Weight(lbs): .0735
Color: Red
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 35B.048.001.02-G14FS



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 3.36 lbs. 1.68 lbs.
18"Hg 10.09 lbs. 5.04 lbs.
27"Hg 15.14 lbs. 7.57 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
