Home > Products > Suction Cups > 35B.048.001.02-G38MS

Product DetailsDimensional DrawingParts & Accessories

Item: 35B.048.001.02-G38MS - 48mm 3.5 bellows modular bag handling suction cup... (Full Description below)

Item#: 35B.048.001.02-G38MS
Price: $30.75 ea.

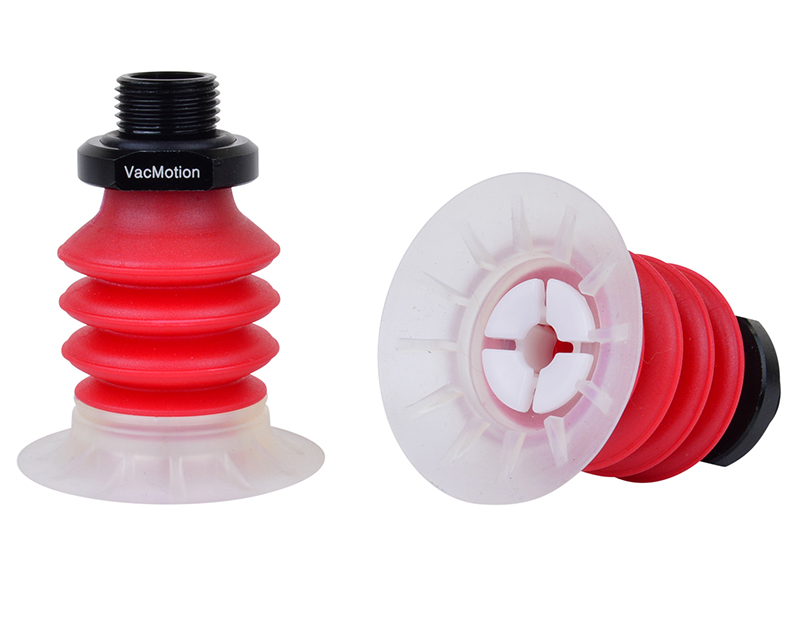

48mm 3.5 bellows modular bag handling suction cup with G3/8 male fitting. Silicone lip.

General Specifications

Style: Bellows
Cleats: Yes
Material: Silicone
Thread Size: 3/8" male
Bellows: 3.5
Outside Diameter: 48.0mm
Weight(lbs): .0575
Color: Red
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 35B.048.001.02-G38MS


Level of Vacuum (inHg) Horizontal Vertical
6"Hg 3.36 lbs. 1.68 lbs.
18"Hg 10.09 lbs. 5.04 lbs.
27"Hg 15.14 lbs. 7.57 lbs.

***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

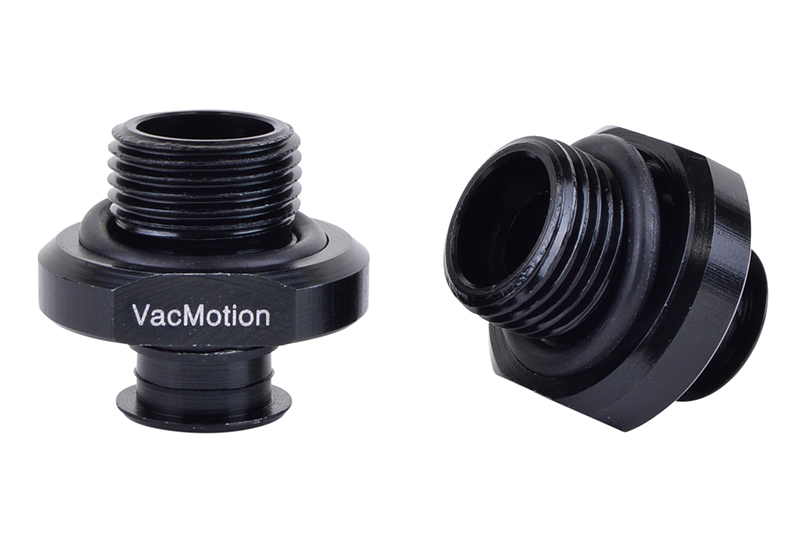

Includes fitting?: YES

Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -58 to 572 °F (-50 to 300 °C)

Video of Product in Action

Vacmotion Product Video
No Videos Available for: 35B.048.001.02-G38MS
