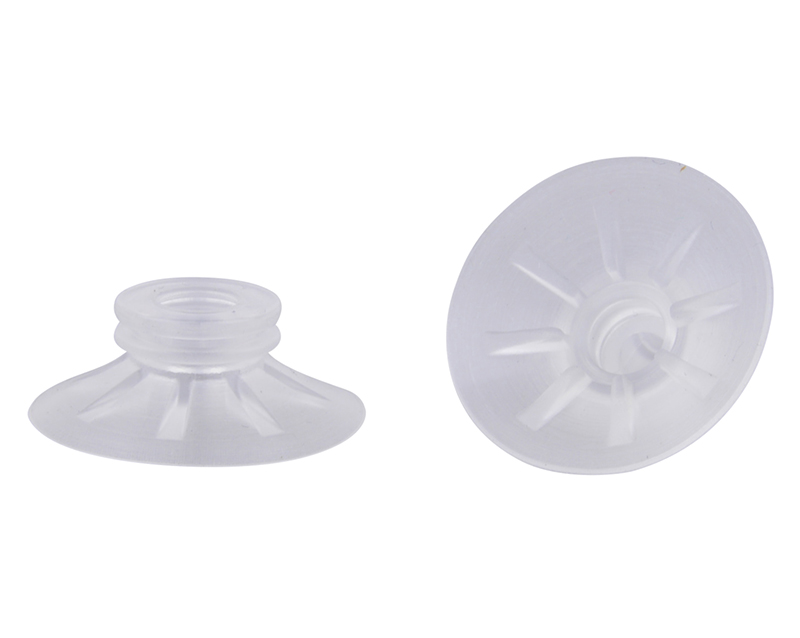

Item: 10F.025.005.02 - 25mm silicone suction lip for modular cups
10F.025.005.02


Item#: 10F.025.005.02
Price: $10.35 ea.





25mm silicone suction lip for modular cups

General Specifications

Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: None
Outside Diameter: 25.0mm
Weight(lbs): .0015
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.025.005.02



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.91 lbs. 0.45 lbs.
18"Hg 2.73 lbs. 1.36 lbs.
27"Hg 4.10 lbs. 2.05 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: NO


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
