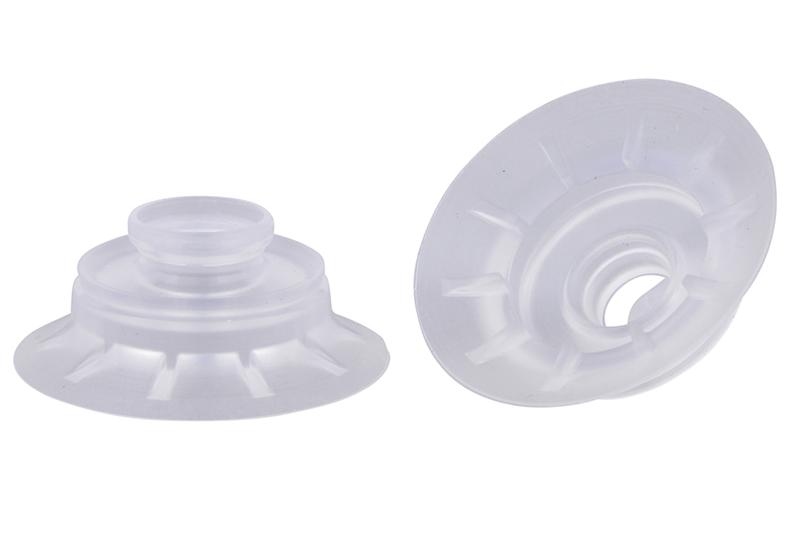

Item: 10F.034.001.02 - 34mm silicone suction lip for modular cups

Item#: 10F.034.001.02

Price: $15.00 ea.

34mm silicone suction lip for modular cups

General Specifications

Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: None
Outside Diameter: 34.0mm
Weight(lbs): .0040
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 10F.034.001.02


Level of Vacuum (inHg) Horizontal Vertical
6"Hg 1.68 lbs. 0.84 lbs.
18"Hg 5.06 lbs. 2.53 lbs.
27"Hg 7.59 lbs. 3.79 lbs.

***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: NO

Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)

Video of Product in Action

Vacmotion Product Video
No Videos Available for: 10F.034.001.02

No CAD files available for this Product
