Quantity:
Item: 10F.060.001.01-G14M - 60 mm flat NBR suction cup with cleats, with G1/4... (Full Description below)
|
Item#: 10F.060.001.01-G14M Price: $11.55 ea.
|

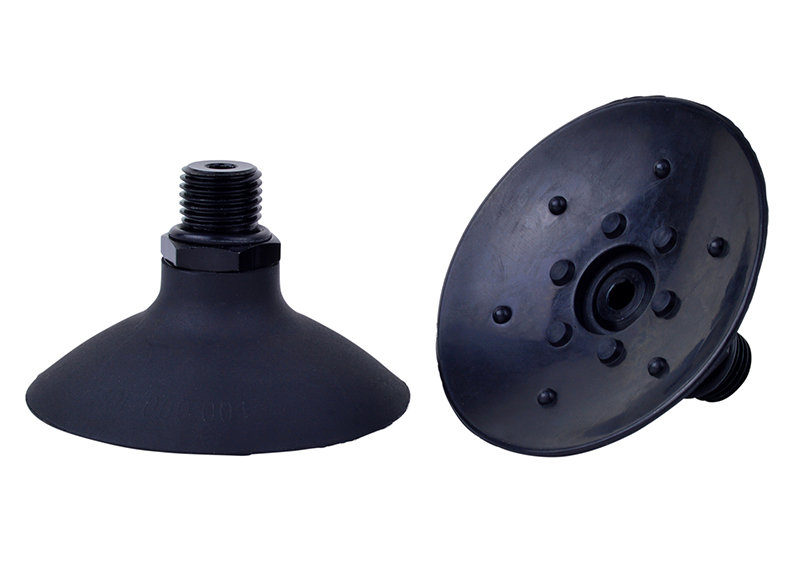

60 mm flat NBR suction cup with cleats, with G1/4 male fitting
General Specifications
Style: Flat Cleats: Yes Material: NBR Thread Size: 1/4" male Outside Diameter: 60.0mm Weight(lbs): .0433 Color: Black Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.060.001.01-G14M
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
5.25 lbs. |
2.62 lbs. |
18"Hg |
15.77 lbs. |
7.88 lbs. |
27"Hg |
23.66 lbs. |
11.83 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 10F.060.001.01-G14M
Related CAD files of Product
Dimensional drawing for Item: 10F.060.001.01-G14M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.060.001.01-G14M
Fitting Image for 402.001 |
General Specifications
Material: Aluminum
Weight: .0150(lbs)
Dimensions: G1/4" male
Description: G1/4 male barb fitting for series 2 cups
*This fitting is included with the cup(10F.060.001.01-G14M)
|
Dimensional Fitting Drawing for 402.001 |
|
---|
