Quantity:
Item: 10F.060.001.02-G18M - 60 mm flat Silicone suction cup with cleats, with... (Full Description below)
|
Item#: 10F.060.001.02-G18M Price: $17.41 ea.
|

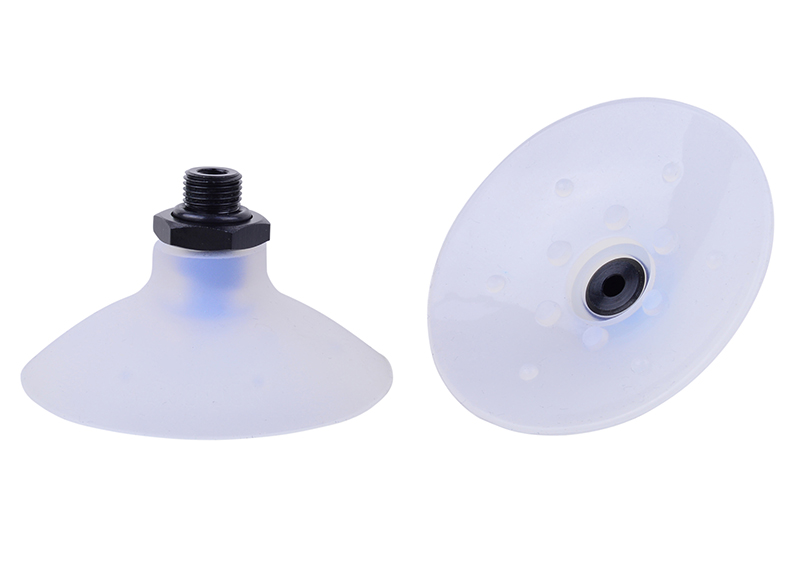

60 mm flat Silicone suction cup with cleats, with G1/8 male fitting
General Specifications
Style: Flat Cleats: Yes Material: Silicone Thread Size: 1/8" male Outside Diameter: 60.0mm Weight(lbs): .0417 Color: Translucent Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.060.001.02-G18M
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
5.25 lbs. |
2.62 lbs. |
18"Hg |
15.77 lbs. |
7.88 lbs. |
27"Hg |
23.66 lbs. |
11.83 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 10F.060.001.02-G18M
Related CAD files of Product

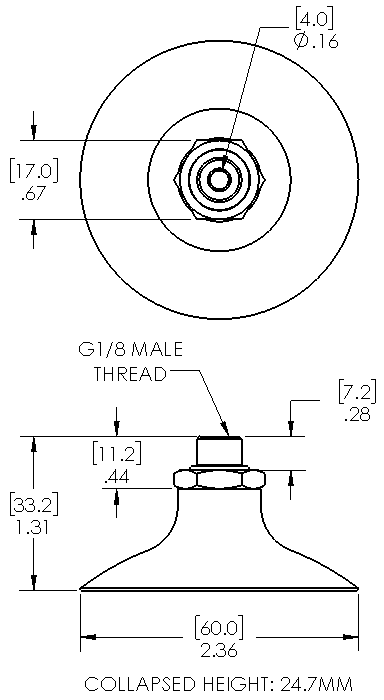

Dimensional drawing for Item: 10F.060.001.02-G18M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.060.001.02-G18M
Fitting Image for 401.032 |
General Specifications
Material: Aluminum
Weight: .0052(lbs)
Dimensions: G1/8" male
Description: G1/8 male barb fitting (MB/SB 32-62mm cups)
*This fitting is included with the cup(10F.060.001.02-G18M)
|
Dimensional Fitting Drawing for 401.032 |
|
---|
